Chart 2 Blower Motor Does Not Operate at All

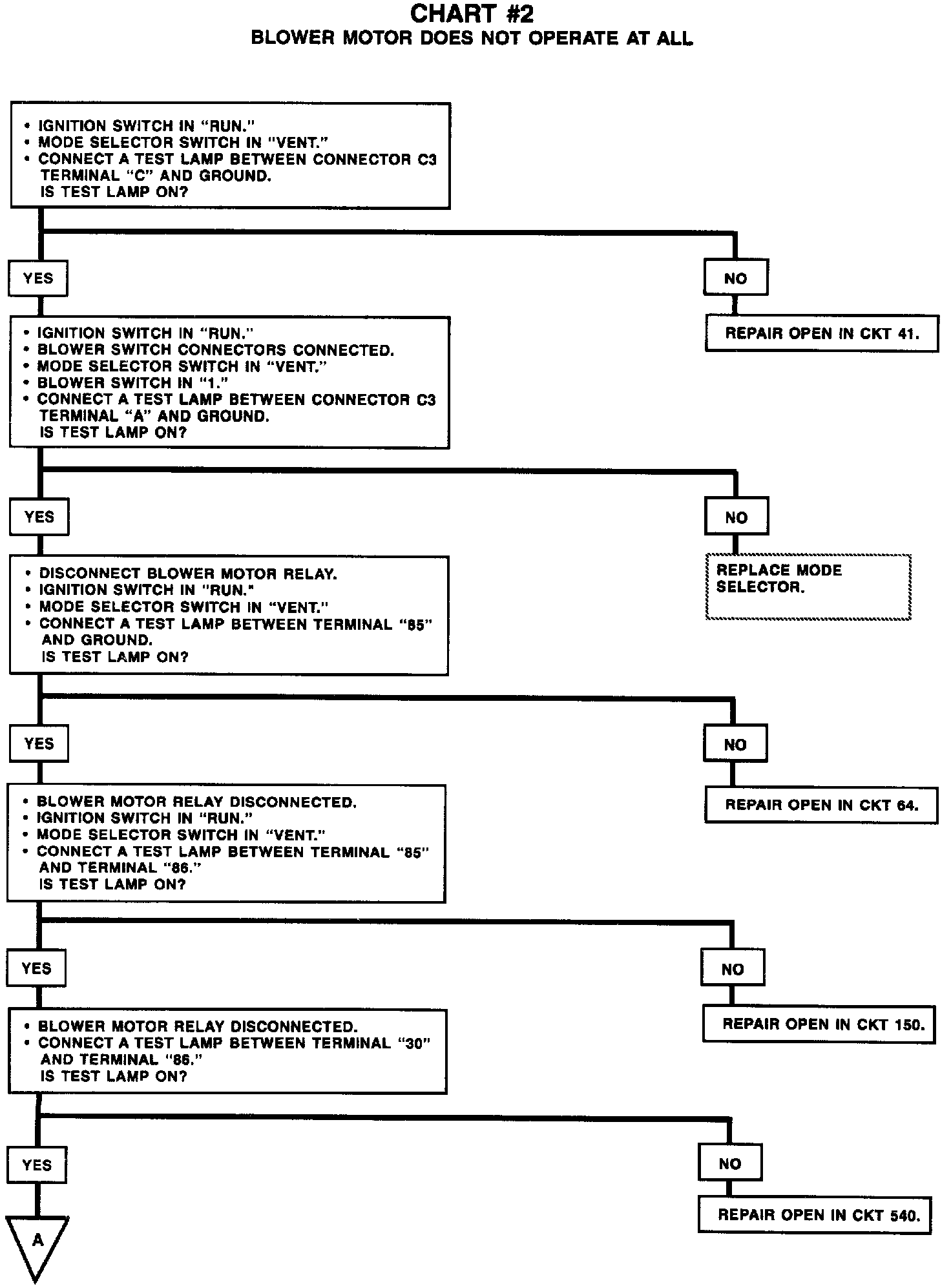

Chart #2 Blower Motor Does Not Operate At All (Part 1 Of 3):



Chart #2 Blower Motor Does Not Operate At All (Part 2 Of 3):



Chart #2 Blower Motor Does Not Operate At All (Part 3 Of 3):
