Home >> Chevrolet >> 1997 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> (C201) to Dash Wiring Harness

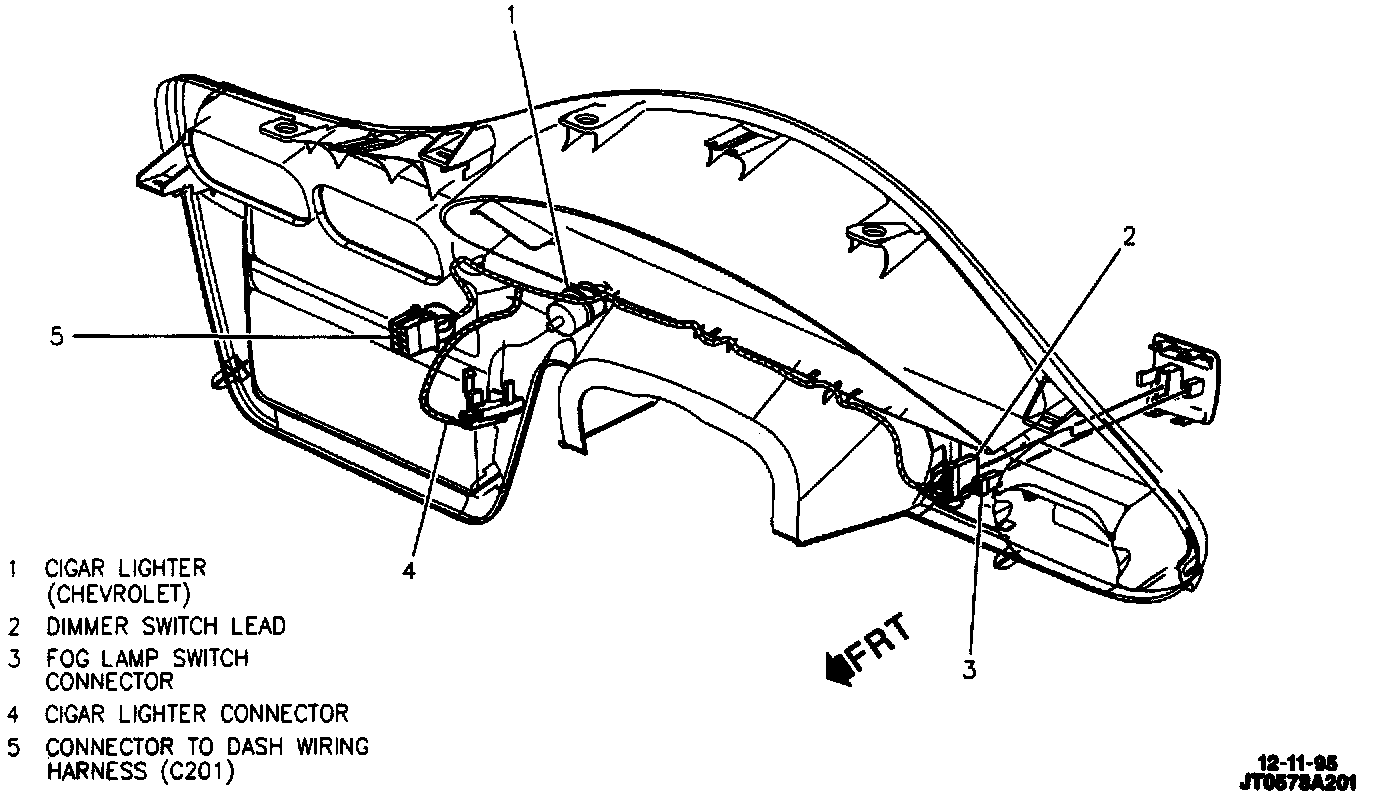

(C201) to Dash Wiring Harness

Rear Of I/P Trim Plate:
