Antilock Brakes / Traction Control Systems
>>
System Diagram
System Diagram

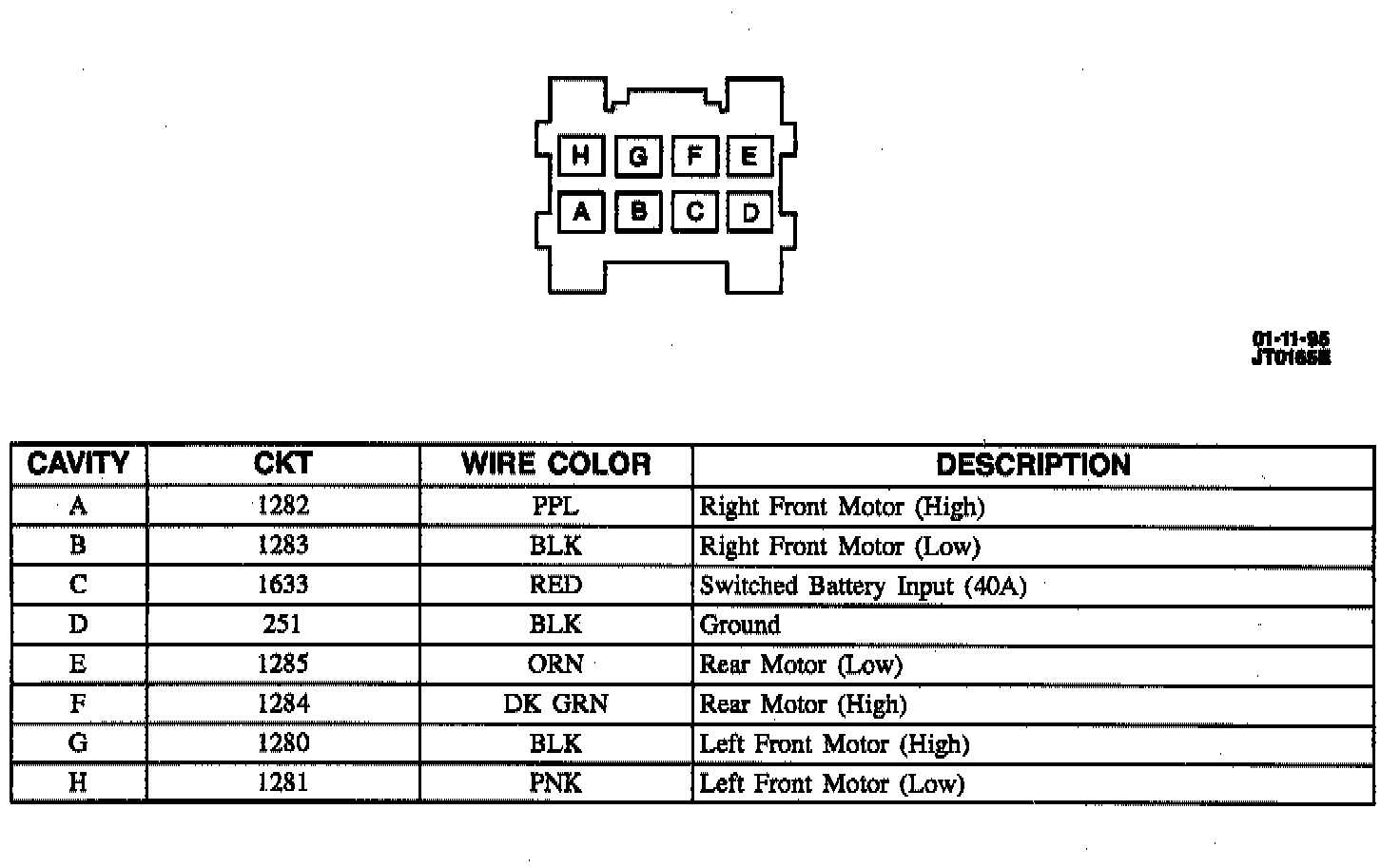

8-Way EBCM Connector (C1)/Description:

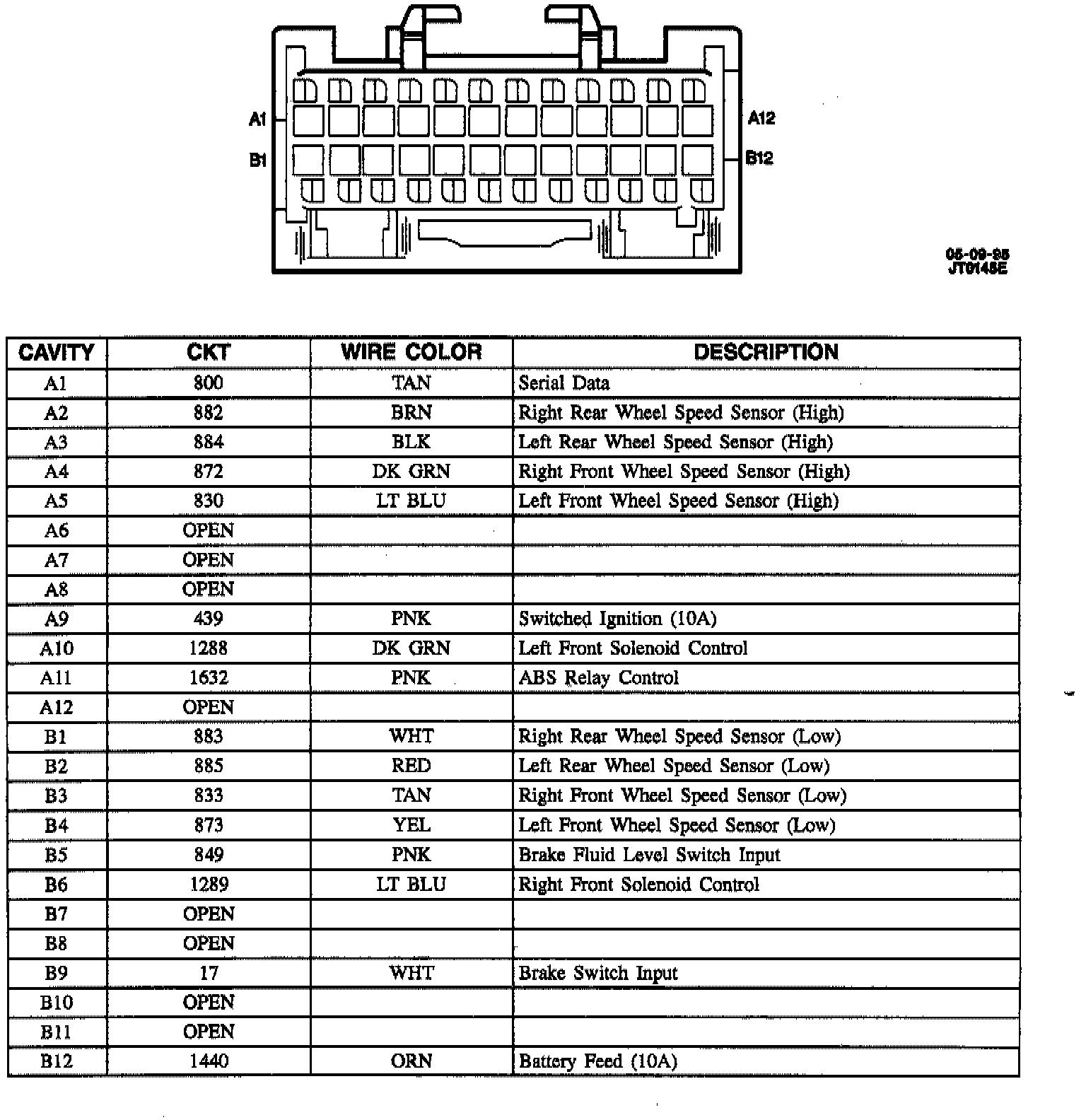

24-Way EBCM Connector (C2)/Description:
