Radio, Stereo, and Compact Disc
>>
System Diagram
System Diagram

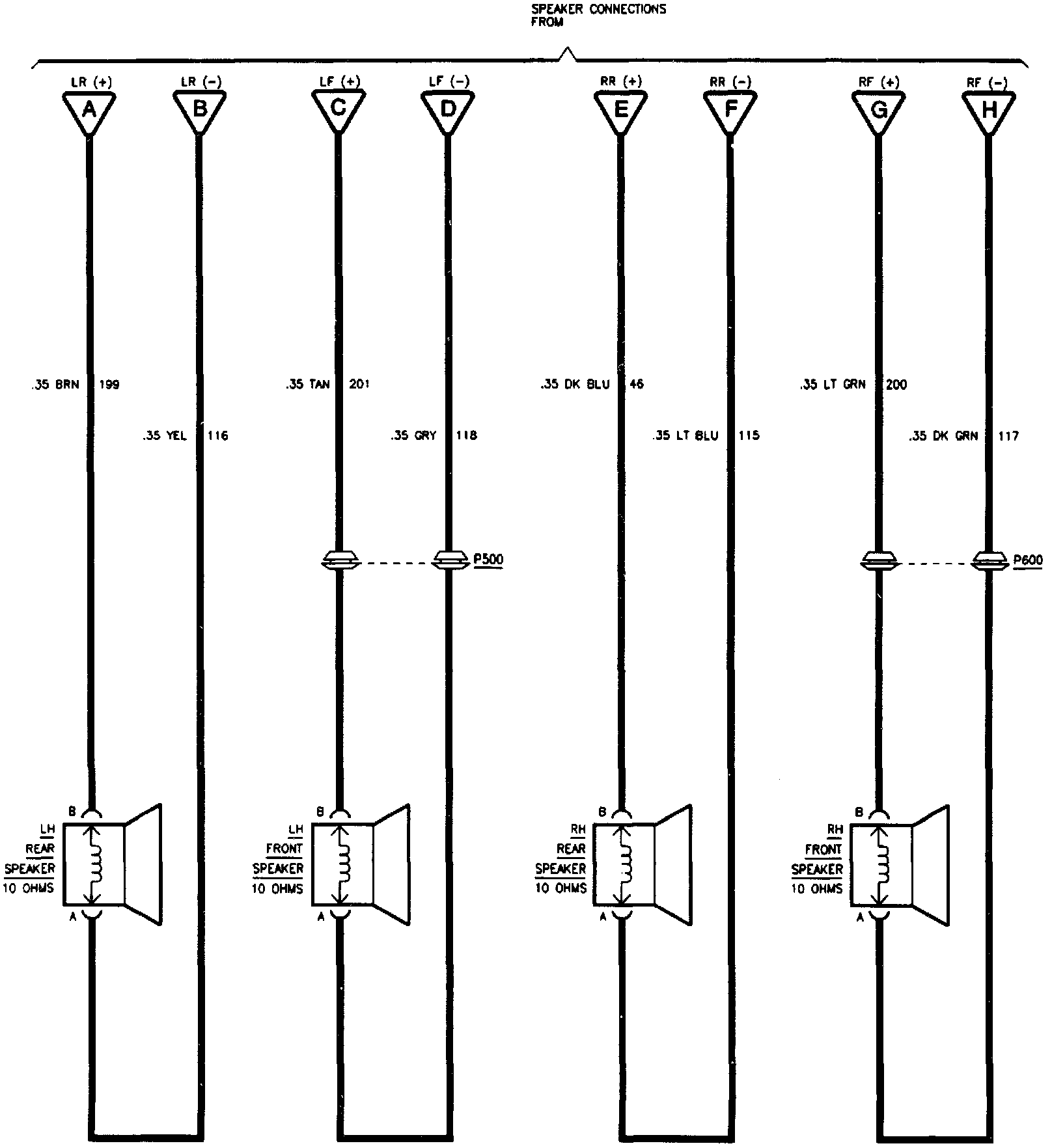

Radio/Audio System (Part 1 Of 4):

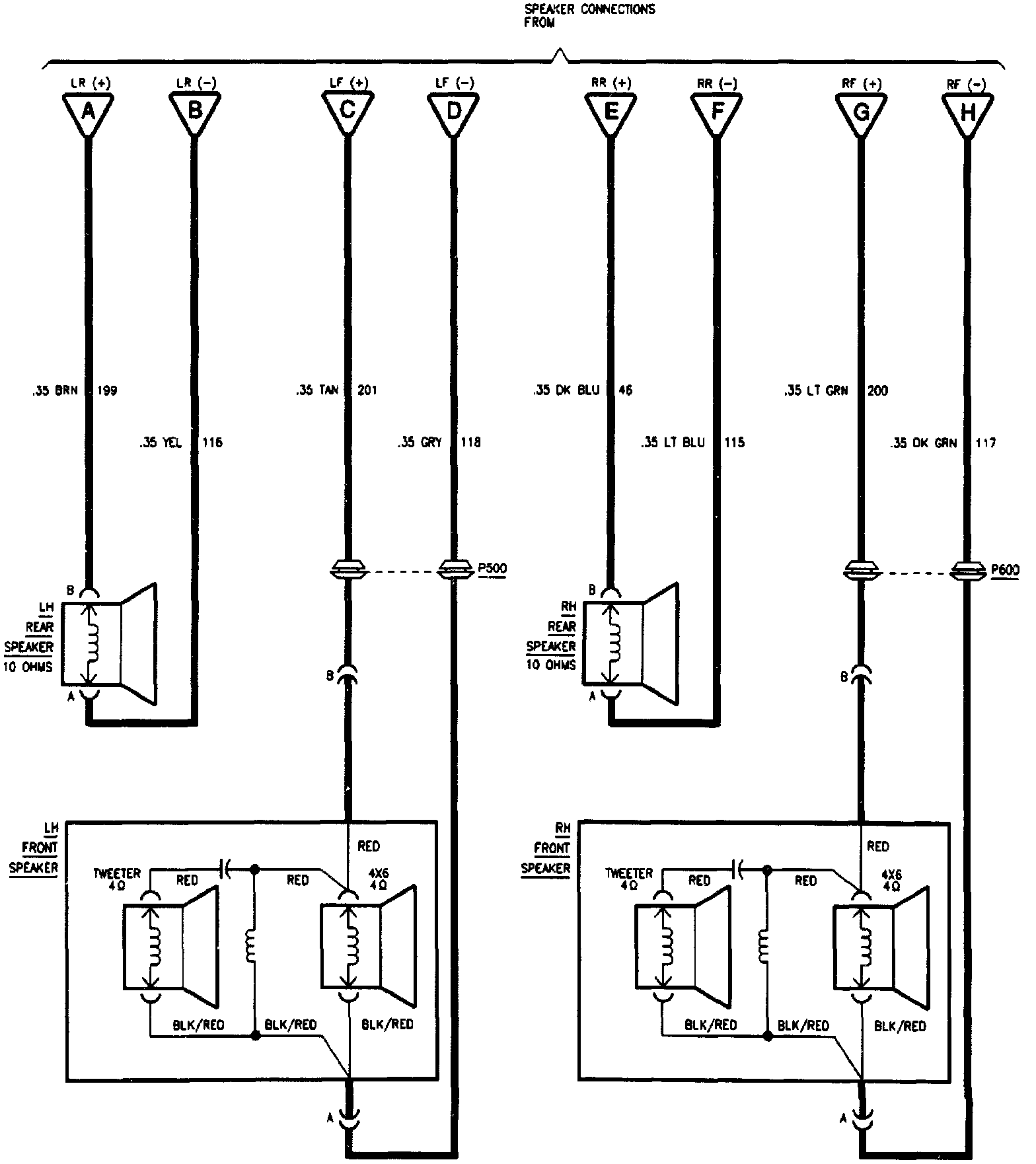

Radio/Audio System (Part 2 Of 4):
Radio/Audio System (Part 3 Of 4):
Radio/Audio System (Part 4 Of 4):
