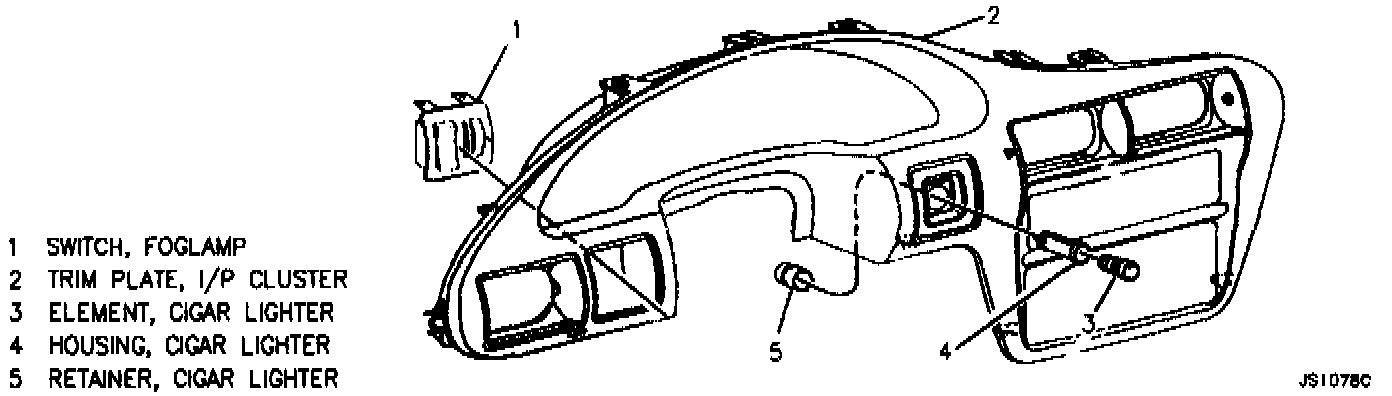

Instrument Panel and Interior Lamp Control Switches

Description:

Remove or Disconnect
1. Negative battery cable.
2. Disable SIR system.
3. I/P cluster trim plate.
4. Electrical connector.
5. Switches by compressing retainers and pulling rearward on the switch.

Install or Connect
1. Switch into cluster trim plate.
2. Electrical connectors.
3. I/P cluster trim plate.
4. Negative battery cable.
5. Enable SIR system.
