Trunk / Liftgate: Service and Repair

Rear Compartment Brace Replacement: Removal Procedure:

REMOVAL PROCEDURE
1. Remove the bolts attaching the quarter panel to the rear compartment brace.
2. Remove the fuel system vent, (right bracket only).

Rear Compartment Brace Replacement: Removal Procedure:

3. Remove the nuts attaching the rear compartment brace to the floor studs.
4. Remove the brace.

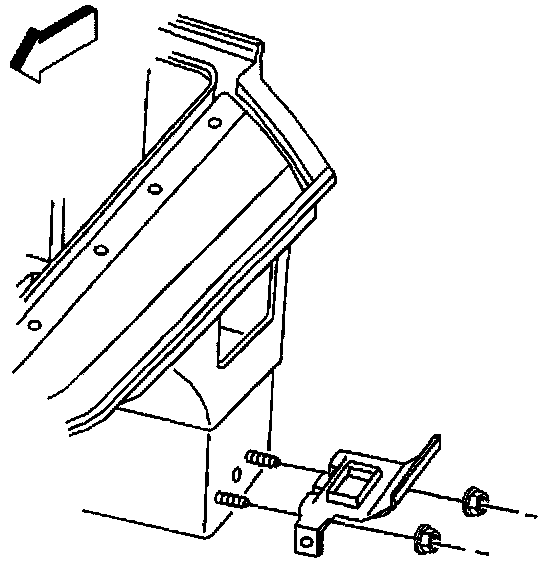

Rear Compartment Brace Replacement: Installation Procedure:

INSTALLATION PROCEDURE
1. Install the brace and attaching nuts to the floor panel studs.

Tighten
Tighten the brace to rear floor nuts to 10 N.m(89 lb in).

NOTE: Refer to Fastener Notice in General Information.

2. Install the fuel system vent, (right bracket only).

Rear Compartment Brace Replacement: Installation Procedure:

3. Install the bolts attaching the quarter panel to the floor brace.

Tighten
Tighten the bolts quarter panel to floor brace bolts 5 N.m (44 lb in).
