Door Lock Cylinder Replacement

Door Lock Cylinder Replacement: Removal Procedure:

REMOVAL PROCEDURE

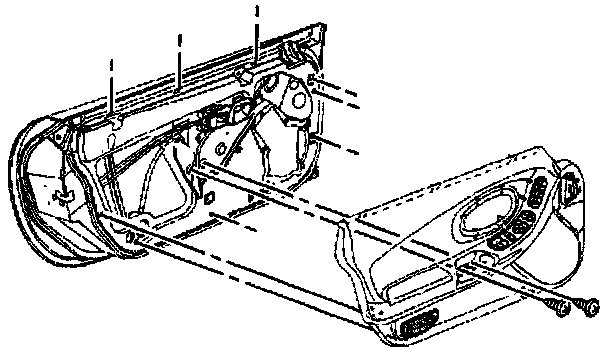

1. Remove the door trim panel.

Door Lock Cylinder Replacement: Removal Procedure:

2. Remove the outside handle.

Door Lock Cylinder Replacement: Removal Procedure:

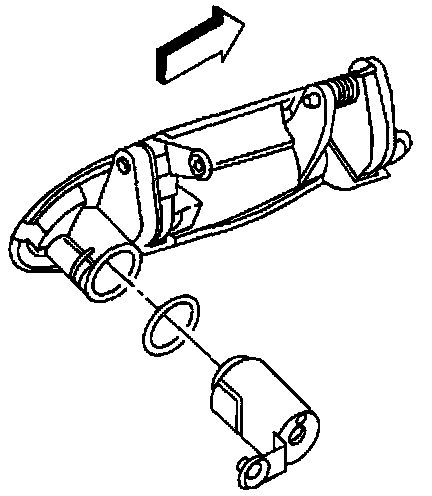

3. Remove the retaining clip and the lock cylinder lever.
4. Remove the spring clip retaining the lock cylinder.
5. Remove the Lock cylinder and the O-ring seal from the handle.

Door Lock Cylinder Replacement: Installation Procedure:

INSTALLATION PROCEDURE
1. Install the lock cylinder with the O-ring to handle.
2. Install the lock cylinder retaining spring clip.
3. Install the lever and clip to the lock cylinder.

Door Lock Cylinder Replacement: Installation Procedure:

4. Install the outside handle.

Door Lock Cylinder Replacement: Installation Procedure:

5. Install the door trim panel.
