Lock Pillar Trim Replacement

REMOVAL PROCEDURE

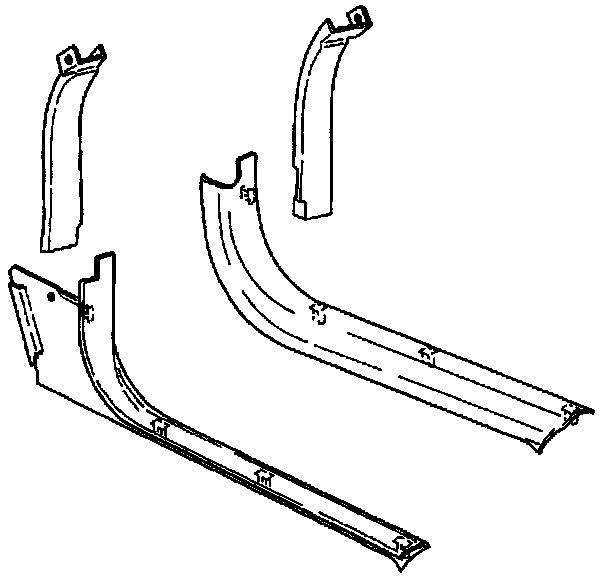

Lock Pillar Trim Replacement: Removal Procedure:

1. Remove the sill plate.

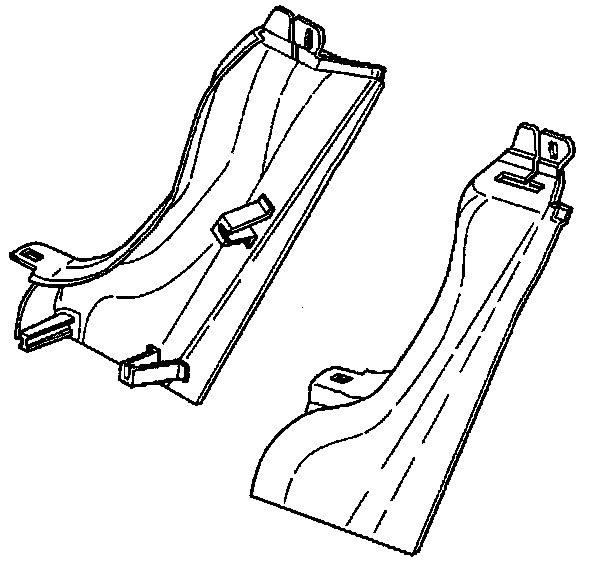

Lock Pillar Trim Replacement: Removal Procedure:

2. Pull the lock pillar trim panel with retainers from the lock pillar and the side rail.
3. Slide the lock pillar trim out from under the rear compartment side trim panel.
4. Separate the trim panel from the seat belt.
5. Remove the lock pillar trim.

INSTALLATION PROCEDURE

Lock Pillar Trim Replacement: Installation Procedure:

1. Route the seat belt through the lock pillar trim panel.
2. Position the lock pillar trim panel under rear compartment side trim panel.
3. Position the retainers to holes in lock pillar and side rail.
4. Push in on the panel securing the retainers.

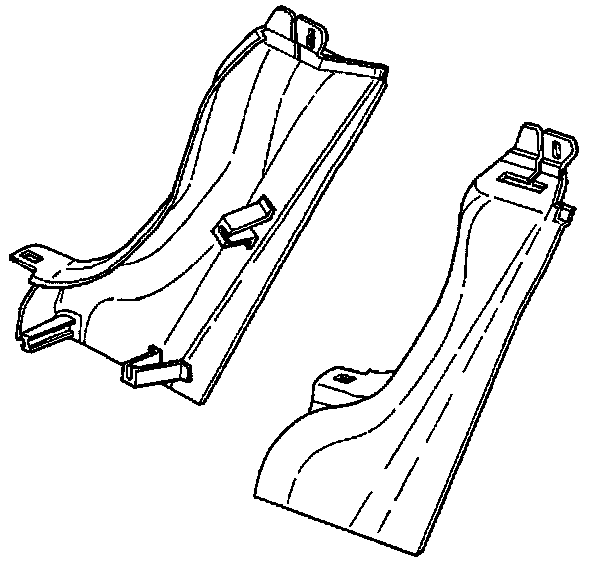

Lock Pillar Trim Replacement: Installation Procedure:

5. Install the sill plate.
