Inside Rearview Mirror Replacement

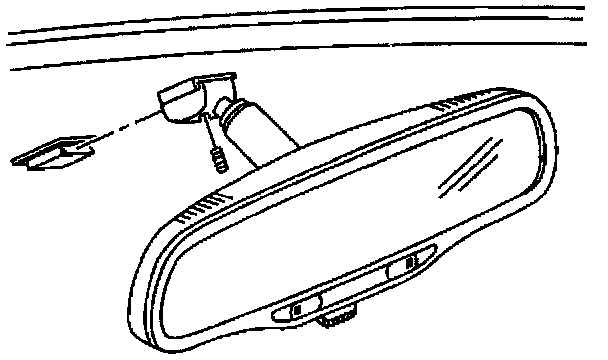

Rear View Mirror Replacement: Removal Procedure:




REMOVAL PROCEDURE
1. Disconnect the inside rearview mirror electrical connector.
2. Loosen the mirror mount tension screw.
3. Slide the mirror up off the mirror bracket.

Rear View Mirror Replacement: Installation Procedure:




INSTALLATION PROCEDURE
1. Slide the rearview mirror down onto the bracket.
2. Connect the electrical connector.
3. Tighten the mirror tension screw.

Tighten

NOTE: Tighten the rearview mirror mount tension screw to 1.5 N.m (13 lb in). Refer to Fastener Notice in General Information.
