Roof Lift Off Panel Front Latch Handle Striker

Roof Lift Off Panel Front Latch Handle Striker: Removal Procedure:

REMOVAL PROCEDURE

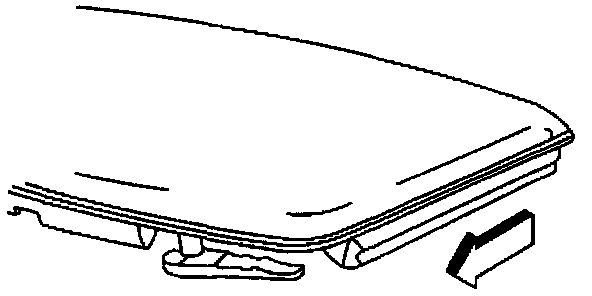

1. Remove the roof panel.

Roof Lift Off Panel Front Latch Handle Striker: Removal Procedure:

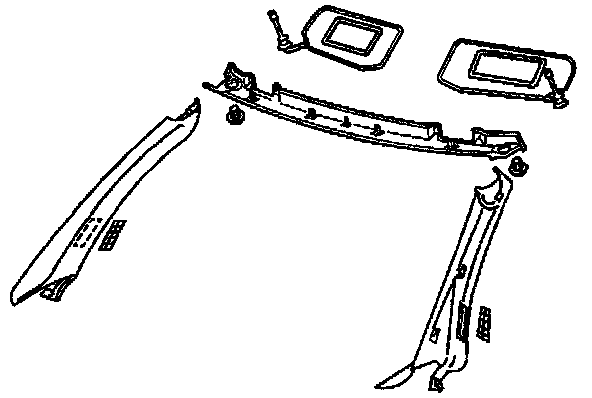

2. Remove the sunshade.
3. Remove the side and upper garnish moldings.

Roof Lift Off Panel Front Latch Handle Striker: Removal Procedure:

4. Mark the location of the striker to aid in installation.
5. Remove the bolts attaching the striker.
6. Remove the striker.

Roof Lift Off Panel Front Latch Handle Striker: Installation Procedure:

INSTALLATION PROCEDURE
1. Align the striker with the marks made before removal.
2. Install the striker attaching bolts.

Tighten

NOTE: Tighten the roof front latch handle striker bolts to 10 N.m (89 lb in). Refer to Fastener Notice in General Information.

Roof Lift Off Panel Front Latch Handle Striker: Installation Procedure:

3. Install the upper and side garnish moldings.
4. Install the sunshade.

Roof Lift Off Panel Front Latch Handle Striker: Installation Procedure:

5. Install the root panel.
6. Adjust if necessary. Refer to Roof Lift Off Panel Adjustment. Adjustments
