Roof Lift Off Panel Rear Latch Replacement

Roof Lift Off Panel Rear Latch Handle Replacement: Removal Procedure:

REMOVAL PROCEDURE
1. Remove the roof lift off panel.

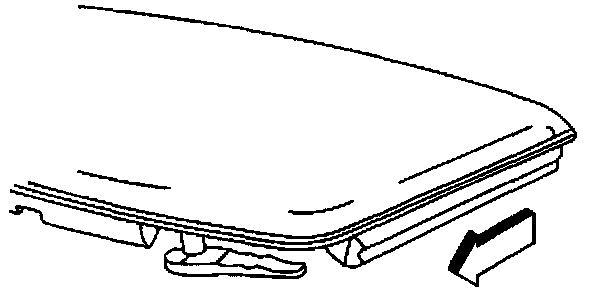

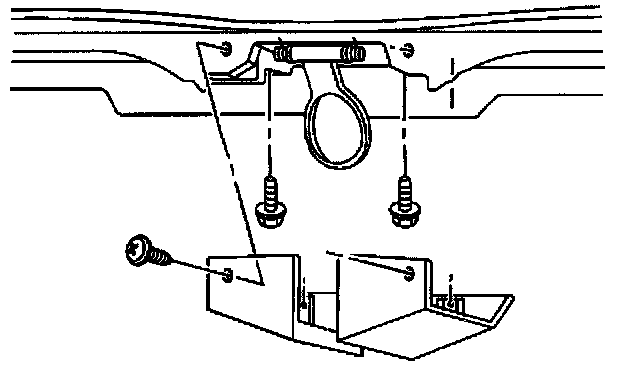

Roof Lift Off Panel Rear Latch Handle Replacement: Removal Procedure:

2. Remove the screws attaching the latch cover.
3. Grasp the latch cover and pull the cover off.

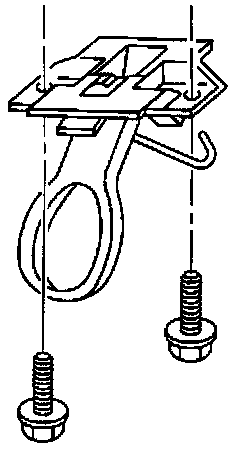

Roof Lift Off Panel Rear Latch Handle Replacement: Removal Procedure:

4. Remove the bolts attaching the latch.
5. Remove the latch.

Roof Lift Off Panel Rear Latch Handle Replacement: Installation Procedure:

INSTALLATION PROCEDURE
1. Position the latch.
2. Install the latch and attaching bolts.

Tighten

NOTE: Tighten the roof rear latch bolts to 10 N.m (89 lb in). Refer to Fastener Notice in General Information.

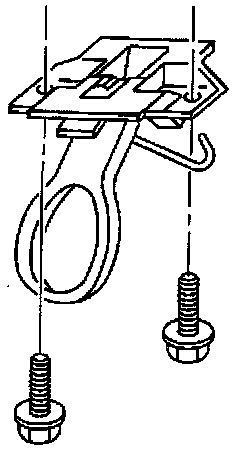

Roof Lift Off Panel Rear Latch Handle Replacement: Installation Procedure:

3. Install the latch cover and attaching screws.

Tighten
Tighten the roof rear latch cover screws to 3 N.m (27 lb in).

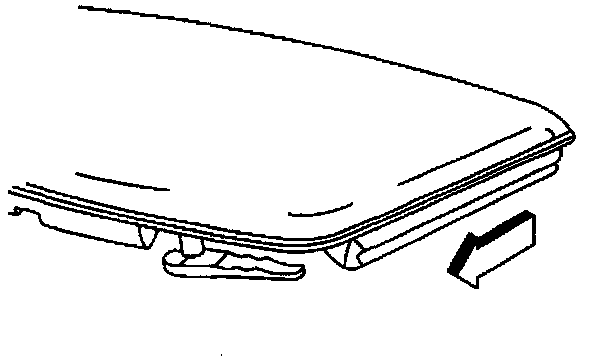

Roof Lift Off Panel Rear Latch Handle Replacement: Installation Procedure:

4. Install the roof lift off panel.
5. Adjust if necessary. Refer to Roof Lift Off Panel Adjustment. Adjustments
