Roof Lift Off Panel Rear Latch Striker Replacement

Roof Lift Off Panel Rear Latch Striker Replacement:Removal Procedure:

REMOVAL PROCEDURE
1. Remove the roof lift off panel.

Roof Lift Off Panel Rear Latch Striker Replacement:Removal Procedure:

2. Remove the roof bow center interior trim panel.

Roof Lift Off Panel Rear Latch Striker Replacement:Removal Procedure:

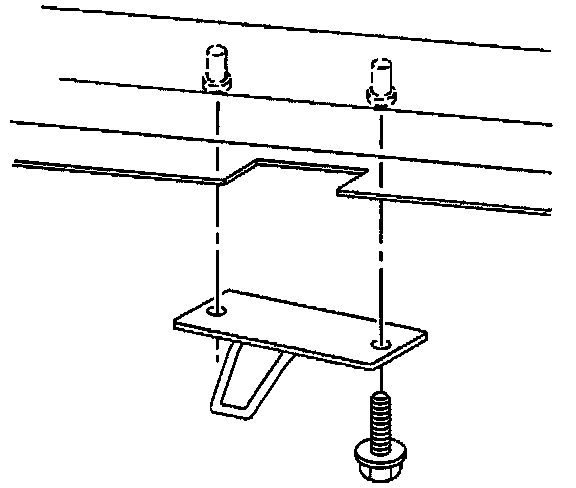

3. Mark the location of the striker.
4. Remove the bolts attaching the striker.
5. Remove the striker.

Roof Lift Off Panel Rear Latch Striker Replacement: Installation Procedure:

INSTALLATION PROCEDURE

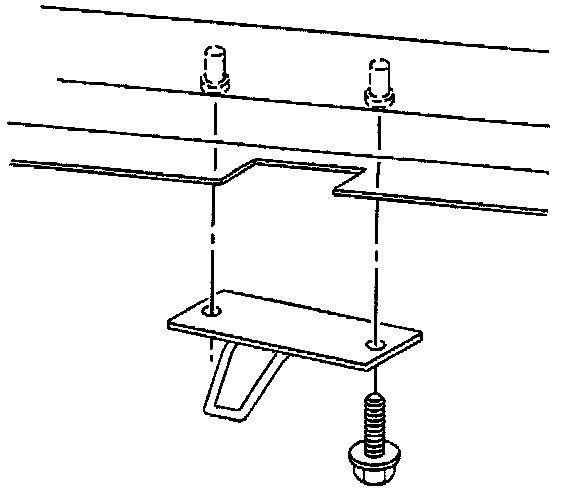

1. Position the striker to the marks made before removal.
2. Install the striker attaching bolts.

Tighten

NOTE: Tighten the roof rear latch striker bolts to 10 N.m (89 lb in). Refer to Fastener Notice in General Information.

Roof Lift Off Panel Rear Latch Striker Replacement: Removal Procedure:

3. Install the roof bow center interior trim panel.

Roof Lift Off Panel Rear Latch Striker Replacement: Removal Procedure:

4. Install the roof lift off panel.
