Roof Lift Off Panel Rear Locator Pin Replacement

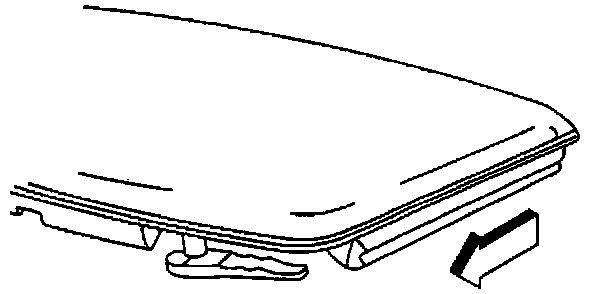

Roof Lift Off Panel Rear Locator Pin Replacement: Removal Procedure:

REMOVAL PROCEDURE
1. Remove the roof lift off panel.

Roof Lift Off Panel Rear Lactor Pin Replacement: Removal Procedure:

2. Remove the roof panel rear locator pin from the roof panel.

Roof Lift Off Panel Rear Lactor Pin Replacement: Installation Procedure:

INSTALLATION PROCEDURE
1. Install the rear roof panel locator pin.

Tighten

NOTE: Tighten the roof rear locator pin to 25 N.m (18 lb ft). Refer to Fastener Notice in General Information.

Roof Lift Off Panel Rear Lactor Pin Replacement: Installation Procedure:

2. Install the roof panel.
