Roof Lift Off Panel Rear Locator Replacement

Roof Lift Off Panel Rear Locator Replacement: Removal Procedure:

REMOVAL PROCEDURE

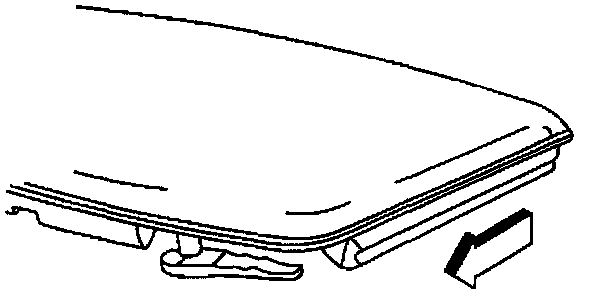

1. Remove the roof panel.

Roof Lift Off Panel Rear Lactor Replacement: Removal Procedure:

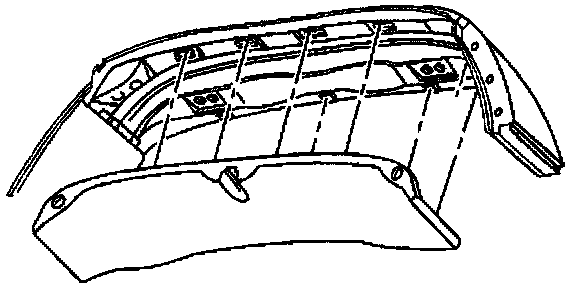

2. Remove the rear roof bow center interior trim panel.

Roof Lift Off Panel Rear Lactor Replacement: Removal Procedure:

3. Mark the location of the locator bracket.
4. Remove the locator bracket mounting bolts.
5. Remove the locator and bracket.
6. Mark the location of the locator.
7. Remove the locator from the bracket.

Roof Lift Off Panel Rear Lactor Replacement: Installation Procedure:

INSTALLATION PROCEDURE
1. Install the rear locator to the locator bracket.

Tighten

NOTE: Tighten the roof rear locator to locator bracket bolts to 10 N.m (89 lb in).

2. Install the bracket with the locator to the roof center bow.

Tighten
Tighten the roof rear locator bracket bolts to 50 N.m (37 lb ft).

Roof Lift Off Panel Rear Lactor Replacement: Installation Procedure:

3. Install the roof bow center interior trim panel.

Roof Lift Off Panel Rear Lactor Replacement: Installation Procedure:

4. Install the roof lift of panel.
5. Adjust if necessary. Refer to Roof Lift Off Panel Adjustment. Adjustments
