Roof Lift Off Panel Rear Molding Replacement

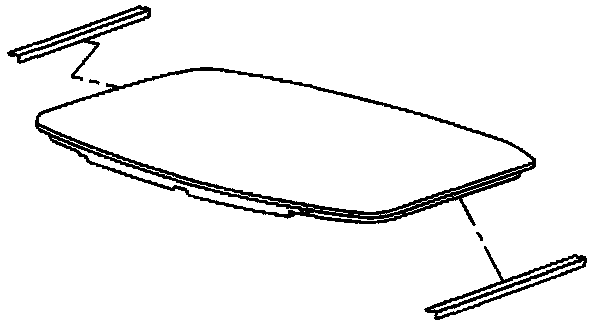

Roof Lift Off Panel Rear Molding Replacement: Removal Procedure:

REMOVAL PROCEDURE
1. Tape the edge of the roof panel to protect the panel from damage.
2. Remove the molding by placing a block of wood against the molding and tapping the block of wood with a hammer.

Roof Lift Off Panel Rear Molding Replacement: Removal Procedure:

INSTALLATION PROCEDURE
1. Align the locator on the molding to the corresponding locator on the edge of the roof panel.
2. Install the molding by lightly tapping with a rubber mallet.
