Roof Lift Off Panel Rear Weatherstrip Replacement

Roof Lift Off Panel Rear Weatherstrip Replacement: Removal Procedure:

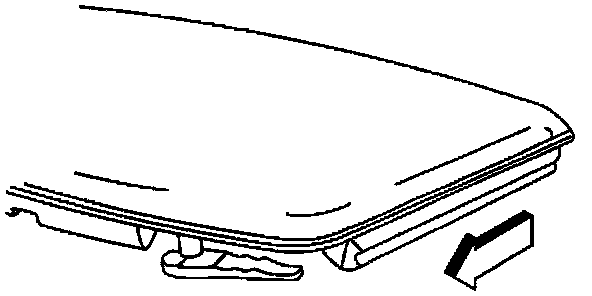

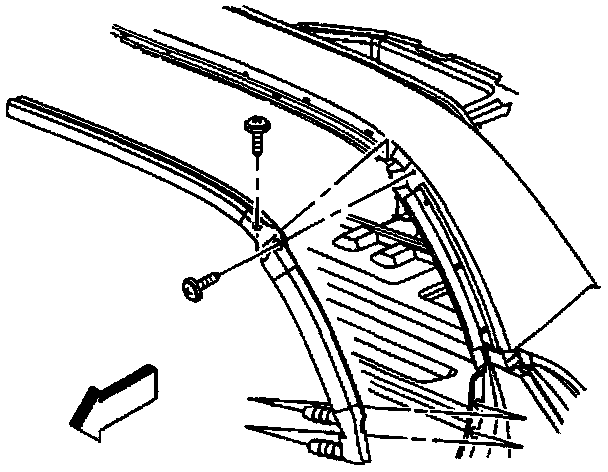

REMOVAL PROCEDURE
1. Remove the roof panel.

Roof Lift Off Panel Rear Weatherstrip Replacement: Removal Procedure:

2. Remove the push-in retainers from the lower ends of the rear weatherstrip.
3. Remove the screws from the upper corners of the rear weatherstrip.
4. Remove the rear weatherstrip by pulling from the retainers.
5. Inspect the weatherstrip for rips or tears. Replace if ripped or torn.

Roof Lift Off Panel Rear Weatherstrip Replacement: Installation Procedure:

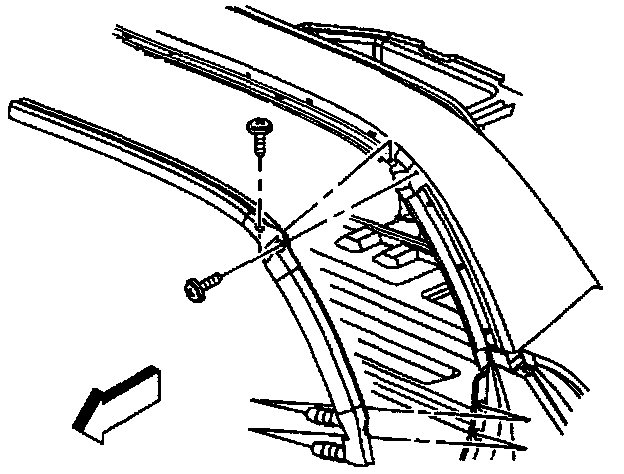

INSTALLATION PROCEDURE
1. Position the rear roof weatherstrip to the retainers on the roof bow.
2. Insert the weatherstrip into the center retainer working from the center outward.
3. Install the screws into the upper corners of the rear weatherstrip.

Tighten
Tighten the rear weatherstrip upper corner screws to 3.4 N.m (30 lb in).

NOTE: Refer to Fastener Notice in General Information.

4. Insert the rear weatherstrip into the side retainers starting at the upper corners and working downward.
5. Install the push in fasteners at the lower ends of the rear weatherstrip.

Roof Lift Off Panel Rear Weatherstrip Replacement: Installation Procedure:

6. Install the roof panel.
