Roof Lift Off Panel Side Weatherstrip Retainer

Roof Lift Off Panel Side Weatherstrip Retainer: Removal Procedure:

REMOVAL PROCEDURE
1. Remove the roof panel.

Roof Lift Off Panel Side Weatherstrip Retainer: Removal Procedure:

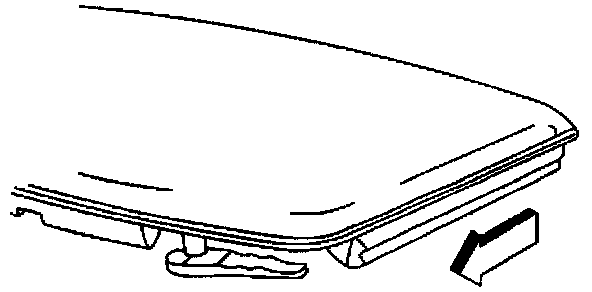

2. Remove the side weatherstrip.
3. Mark the location of the retainer.

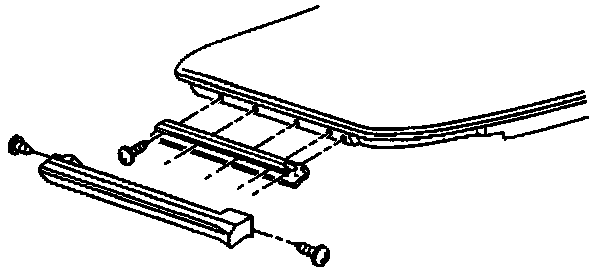

4. Remove the screws attaching the retainer.
5. Remove the retainer by gently pulling the retainer loose from the roof panel.
6. Clean the retainer and the roof panel contact surfaces to remove any old foam sealing tape.

Roof Lift Off Panel Side Weatherstrip Retainer: Installation Procedure:

INSTALLATION PROCEDURE

IMPORTANT: A minimum of 2 mm (0.08 in) of sealing foam tape must extend beyond the edge of the retainer to prevent water leaks.

1. Apply foam sealing tape to a reusable retainer.
2. Position the retainer to the marks made before removal.

IMPORTANT: Stripped, broken, or improperly seated screws must be replaced or repaired to prevent water leaks.

3. Install the forward screw aligning the retainer fore and aft.
4. Install the remaining screws.

Tighten

NOTE: Tighten the side weatherstrip retainer screws to 3.4 N.m (30 lb in). Refer to Fastener Notice in General Information.

Roof Lift Off Panel Side Weatherstrip Retainer: Installation Procedure:

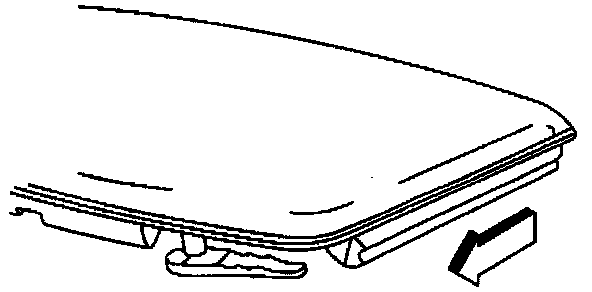

5. Install the side weatherstrip.
6. Install the roof panel.
