Roof Lift Panel Headliner

Roof Lift Panel Headliner: Removal Procedure:

REMOVAL PROCEDURE
1. Remove the roof panel.

Roof Lift Panel Headliner: Removal Procedure:

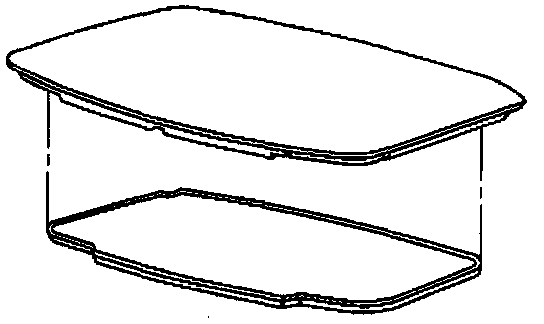

2. Remove the headliner from the roof panel by peeling away the glued areas of the headliner from the roof panel.
3. Remove any adhesive residue from the roof panel headliner contact area.

Roof Lift Panel Headliner: Installation Procedure:

INSTALLATION PROCEDURE
1. Remove the release paper from the adhesive on the headliner contact areas.
2. Install the headliner to the roof lift off panel. Press on the adhesive contact areas to set the adhesive.
3. Using a spatula, tuck the headliner between the root panel and the root frame.

Roof Lift Panel Headliner: Installation Procedure:

4. Install the roof lift off panel.
