Lumbar Bladder Replacement
REMOVAL PROCEDURELumbar Bladder Replacement: Removal Procedure:

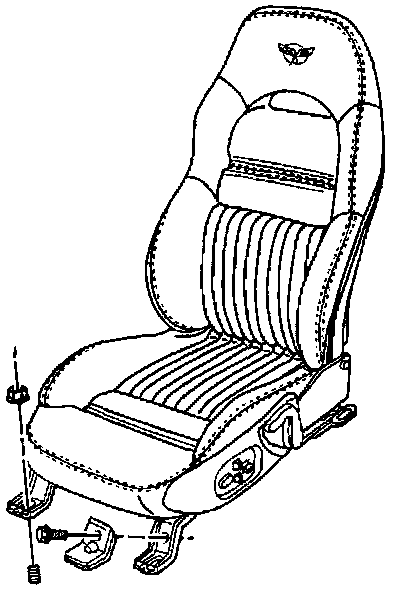

1. Remove the seat.
Lumbar Bladder Replacement: Removal Procedure:
2. Remove the seat cushion cover.
3. Remove the seatback insert pillow.
4. Disconnect the bladder hose connector from the pump.

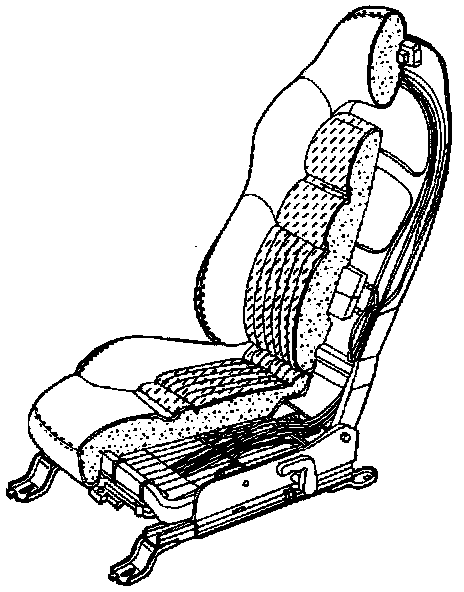

5. Remove the bladders.
5.1. Slide the upper bladder slightly up.
5.2. Tuck the mounting tab under the bladder sleeve.
5.3. Slide the bladder down over the tab.
5.4. Repeat this procedure with the lower bladder.
6. Slide the air hoses from under the seatback cover.
Remove the bladders with hoses.
INSTALLATION PROCEDURE
Lumbar Bladder Replacement: Installation Procedure:
1. Install the lumbar bladder to the seatback.
1.1. Slide the lower bladder sleeve up over the mounting tab.
1.2. Pull the tab out over the bladder sleeve.
1.3. Slide the bladder slightly downward.
1.4. Repeat this procedure with the upper bladder.
2. Tuck the hoses under the corner of the seat back cover foam.
3. Connect the bladder hose connector to the pump.
4. Install the seat cushion cover.
5. Install the seatback insert pillow.
Lumbar Bladder Replacement: Installation Procedure:
6. Install the seat.
