Seat Back Release Cable
REMOVAL PROCEDURESeat Back Release Cable: Removal Procedure:
Seat Back Release Cable: Removal Procedure:

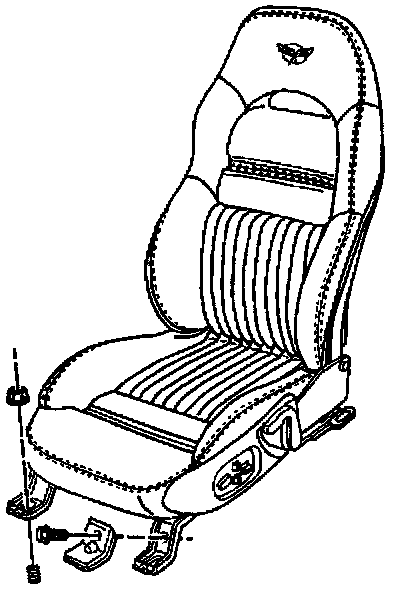

1. Remove the seat.
IMPORTANT: The seatback cover must be partially removed to access the tabs on the back of the release lever. Do not attempt to pry the lever out of the seatback.

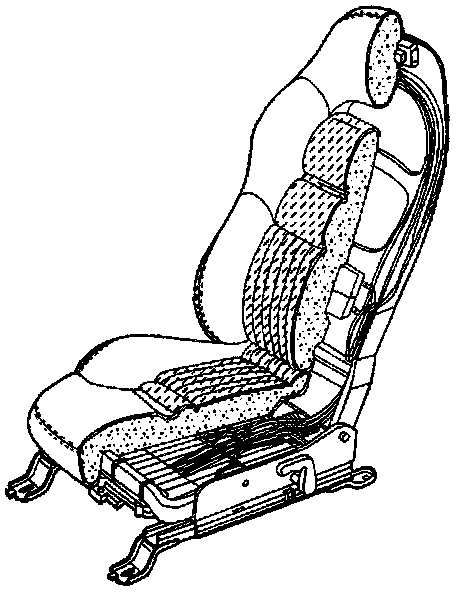

2. Partially remove the seat back trim cover.
Seat Back Release Cable: Removal Procedure:

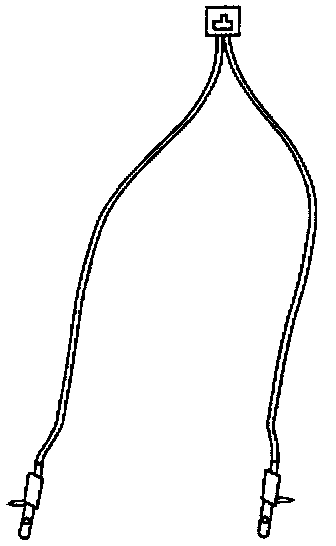

3. Remove the release cable mechanism from the upper seat back by depressing the taps and pushing the release lever out of the seatback frame.
Seat Back Release Cable: Removal Procedure:

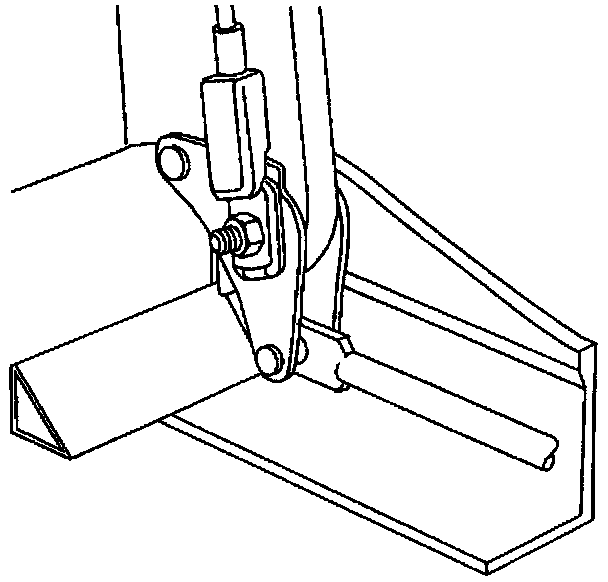

4. Push down on the seat cushion to expose the hinge bolt nuts.
5. Remove the right and left hinge bolt nuts.
6. Remove the cables from the hinges.
7. Remove the release cables up through the seatback frame.
INSTALLATION PROCEDURE
Seat Back Release Cable: Removal Procedure:

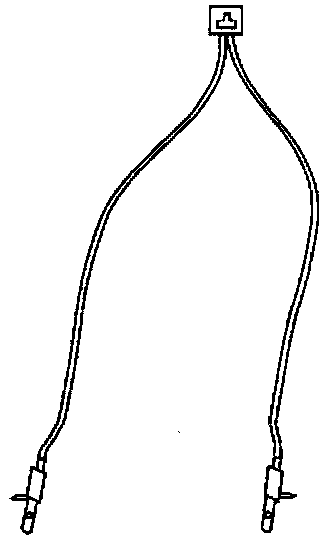

1. Insert the release cables through the opening in the upper seatback frame.
Seat Back Release Cable: Removal Procedure:

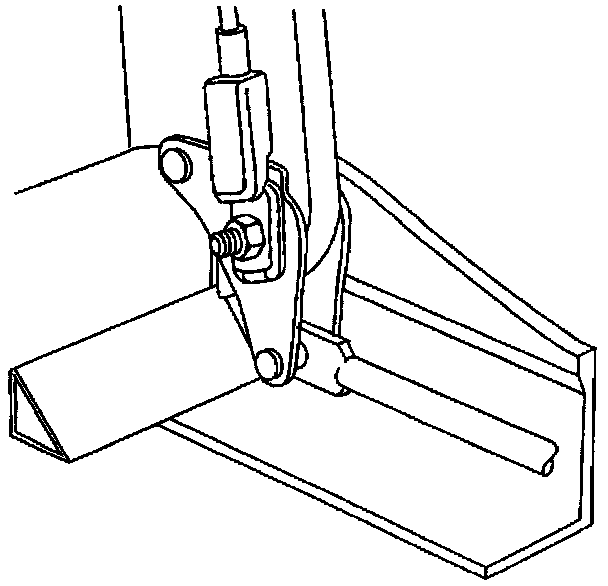

2. Install the release cables to the right and left hinges inserting the locking pins in the notches.
3. Install the nut to the right and left hinge bolts. Use a thread locking compound on the hinge bolts.
Tighten
Tighten the hinge bolt nuts to 24 N.m (18 lb ft).
Seat Back Release Cable: Removal Procedure:
4. Install the seatback trim cover.
5. Install the seat.
