Side Bolster Paddle

REMOVAL PROCEDURE

Side Bolster Paddle: Removal Procedure:

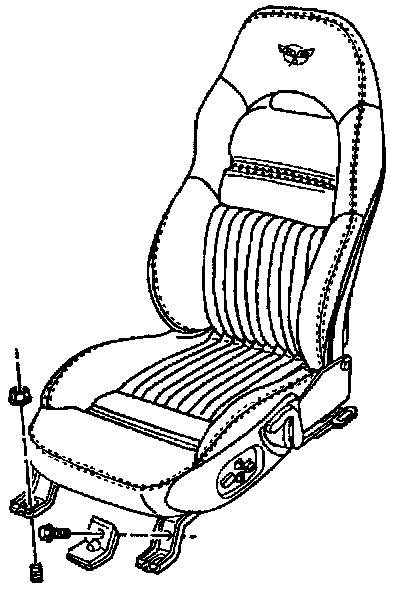

1. Remove the seat.

Side Bolster Paddle: Removal Procedure:

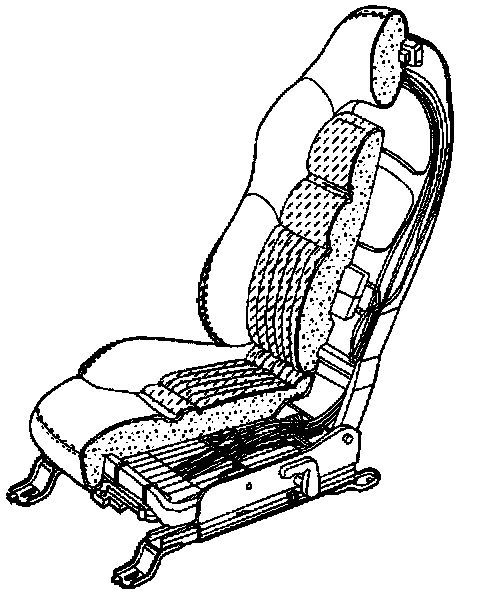

2. Remove the seatback insert pillow cover and foam.
3. Remove the hose connector from the pump.

Side Bolster Paddle: Removal Procedure:

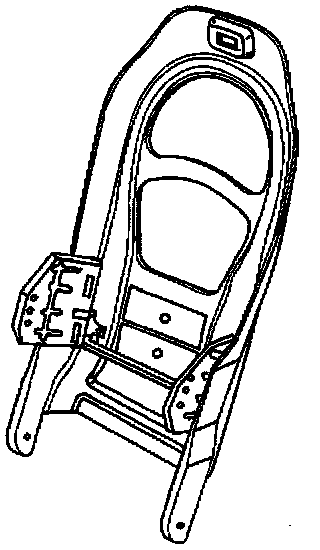

4. Drill out the rivets attaching the paddle to the seatback frame.

Side Bolster Paddle: Removal Procedure:

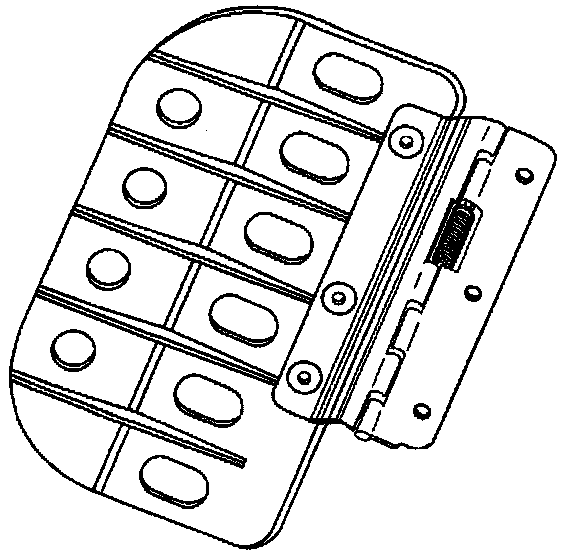

5. Remove the paddle with bladder.

INSTALLATION PROCEDURE

Side Bolster Paddle: Installation Procedure:




1. Rivet the paddle to the seatback frame.

Side Bolster Paddle: Installation Procedure:




2. Install the hose connector to the pump.

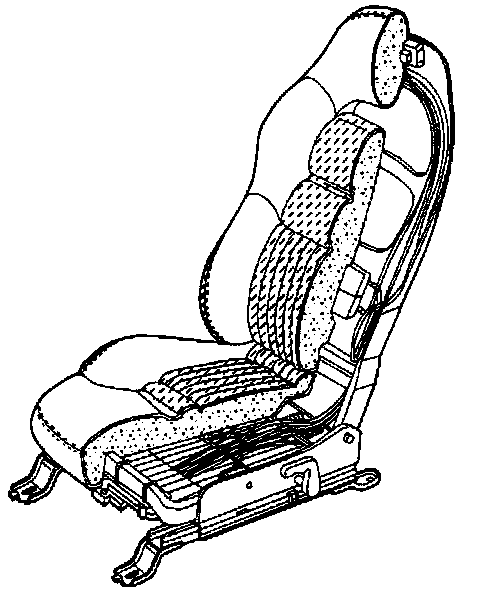

3. Install the seatback foam, cover, and pillow insert.

Side Bolster Paddle: Installation Procedure:

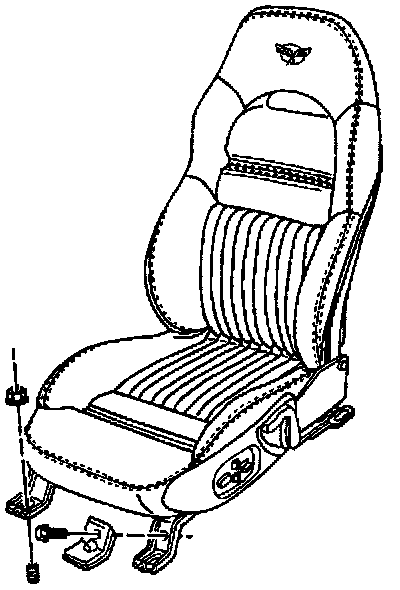

4. Install the seat.
