Tow Hook Replacement, Rear Export

Tow Hook Replacement (Rear Export) : Removal Procedure:

REMOVAL PROCEDURE
1. Remove the rear fascia.

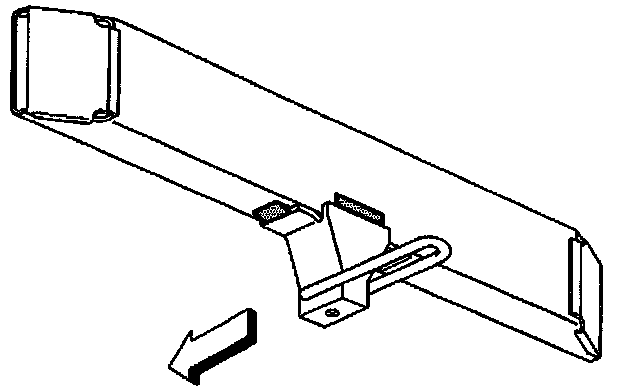

2. Cut through the welds attaching the tow hook to the impact ban
3. Remove the tow hook.

Tow Hook Replacement (Rear Export) : Installation Procedure:

INSTALLATION PROCEDURE

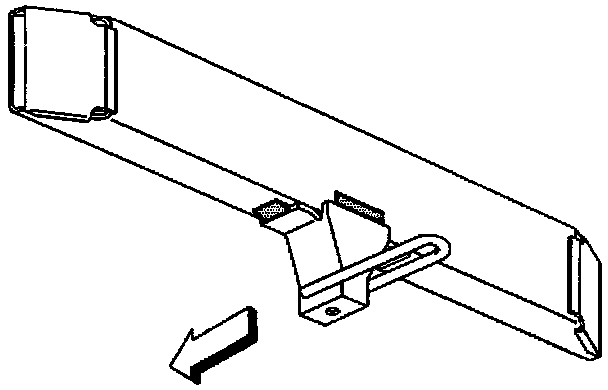

1. Position the tow hook to the center of the rear impact bar.
2. Mig Weld, with 55 mm (21/4 in) long welds, the hook assembly to the impact bar in 4 places: front, rear, inboard side, and outboard side.
3. Install the rear fascia.
