Home >> Chevrolet >> 1997 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Door Control Module (DCM), LH

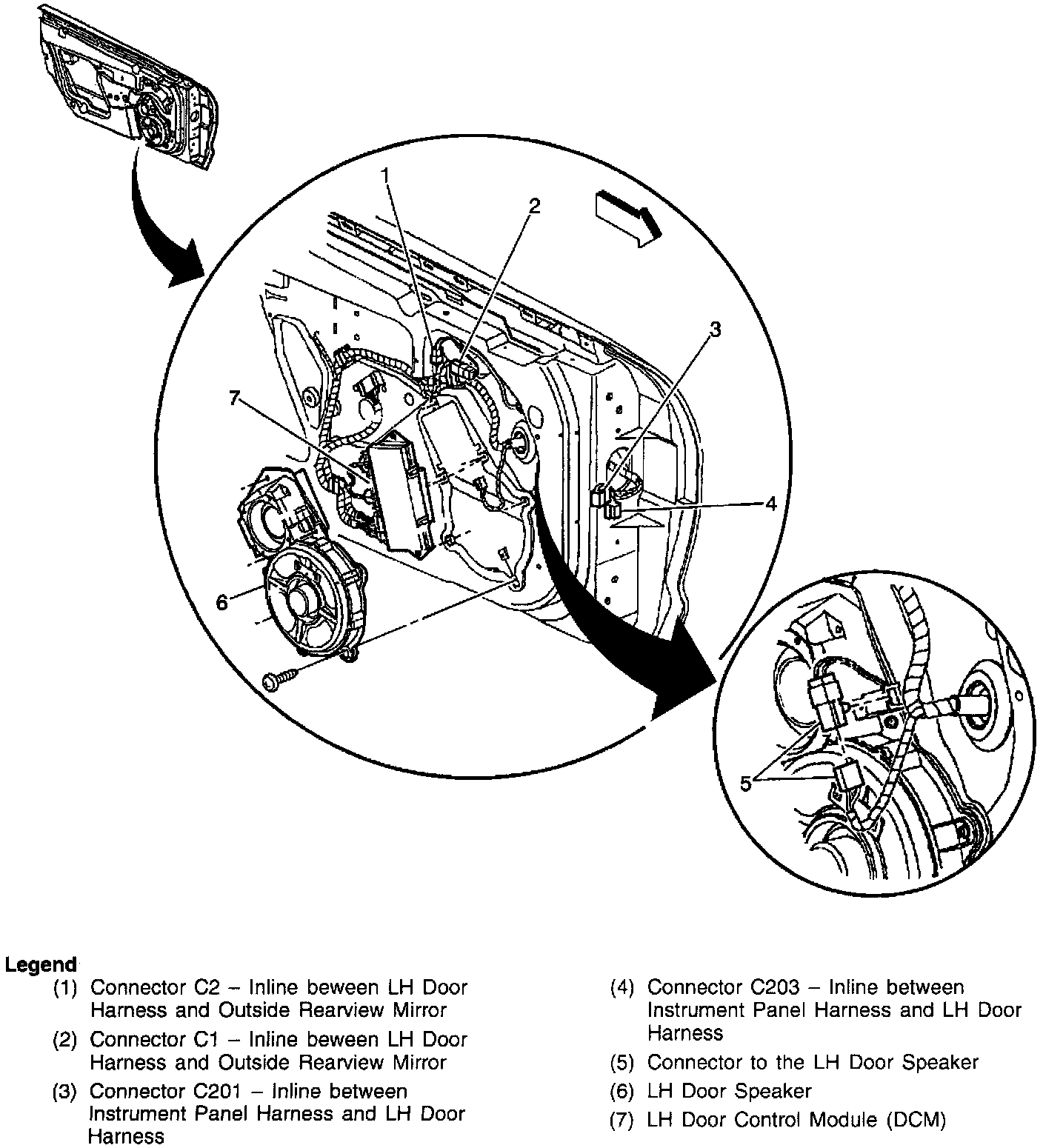

Door Control Module (DCM), LH

Inside LH Door (RH Door Similar):
