Home >> Chevrolet >> 1997 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Marker Lamp

Marker Lamp

RH Side Marker Lamp:

Left Side Marker Lamp:

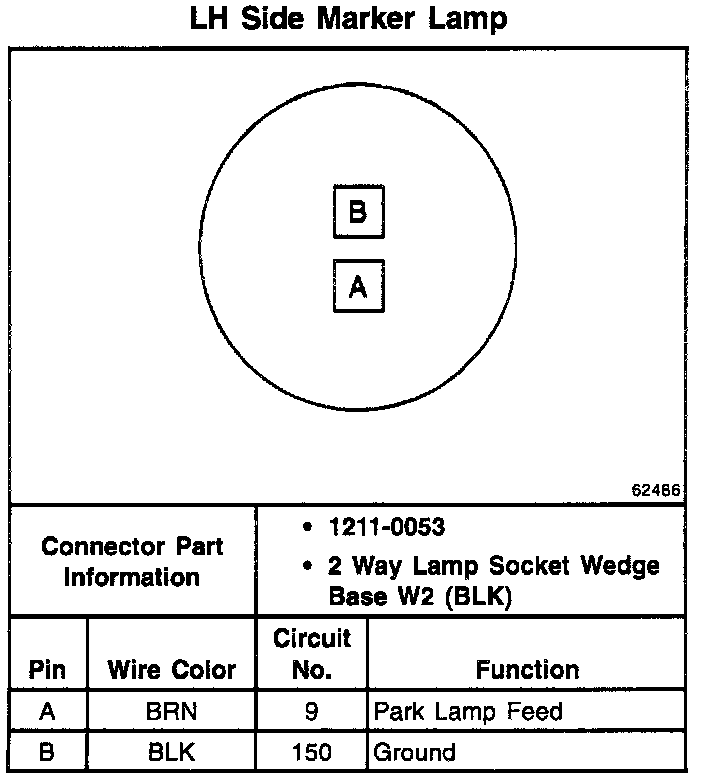

LH Side Marker Lamp:
