Home
>>
Chevrolet
>>
1997
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Lamp
Parking Lamp
LH Park Lamp:

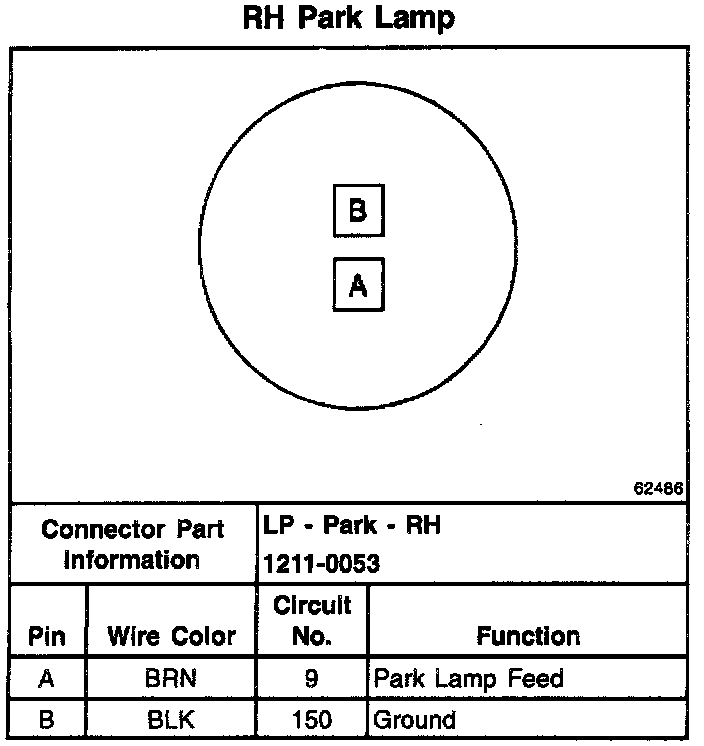

RH Park Lamp:
RF Park Turn Signal Lamp:
LF Park And Turn Signal Lamp:
