Chevrolet
>>
1997
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Shift Interlock, A/T
>>

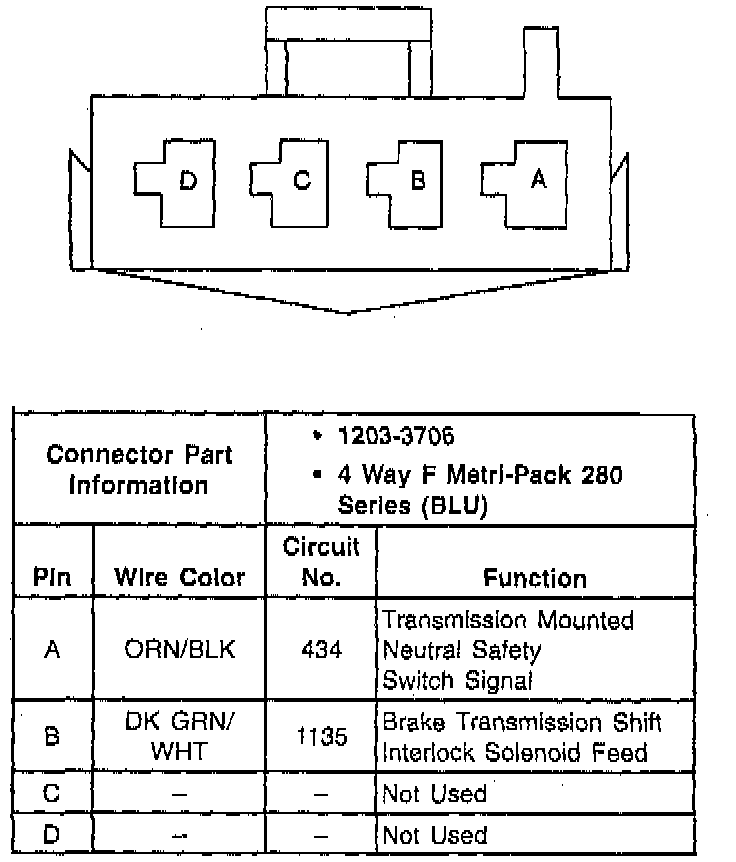

Brake Trans Shift Interlock Solenoid
Brake Trans Shift Interlock Solenoid
