Chevrolet
>>
1997
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trunk / Liftgate
>>
Compartment Lid Ajar Switch, Rear
Compartment Lid Ajar Switch, Rear

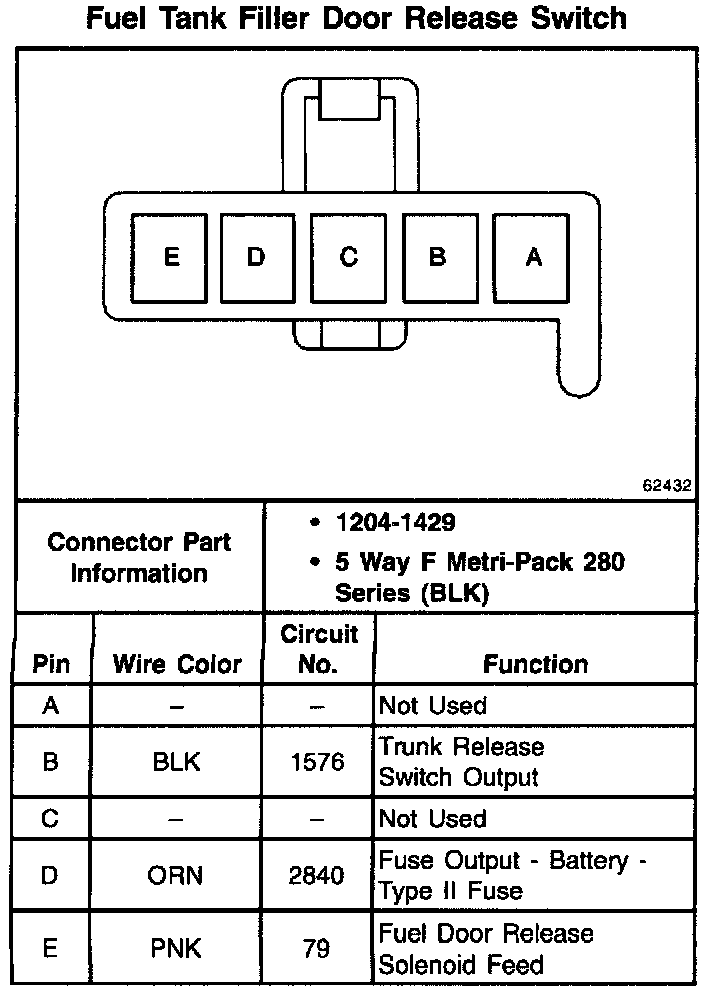

Fuel Tank Filler Door Release Switch:
