Cruise Control
>>
TP & APP Sensor Input
TP & APP Sensor Input

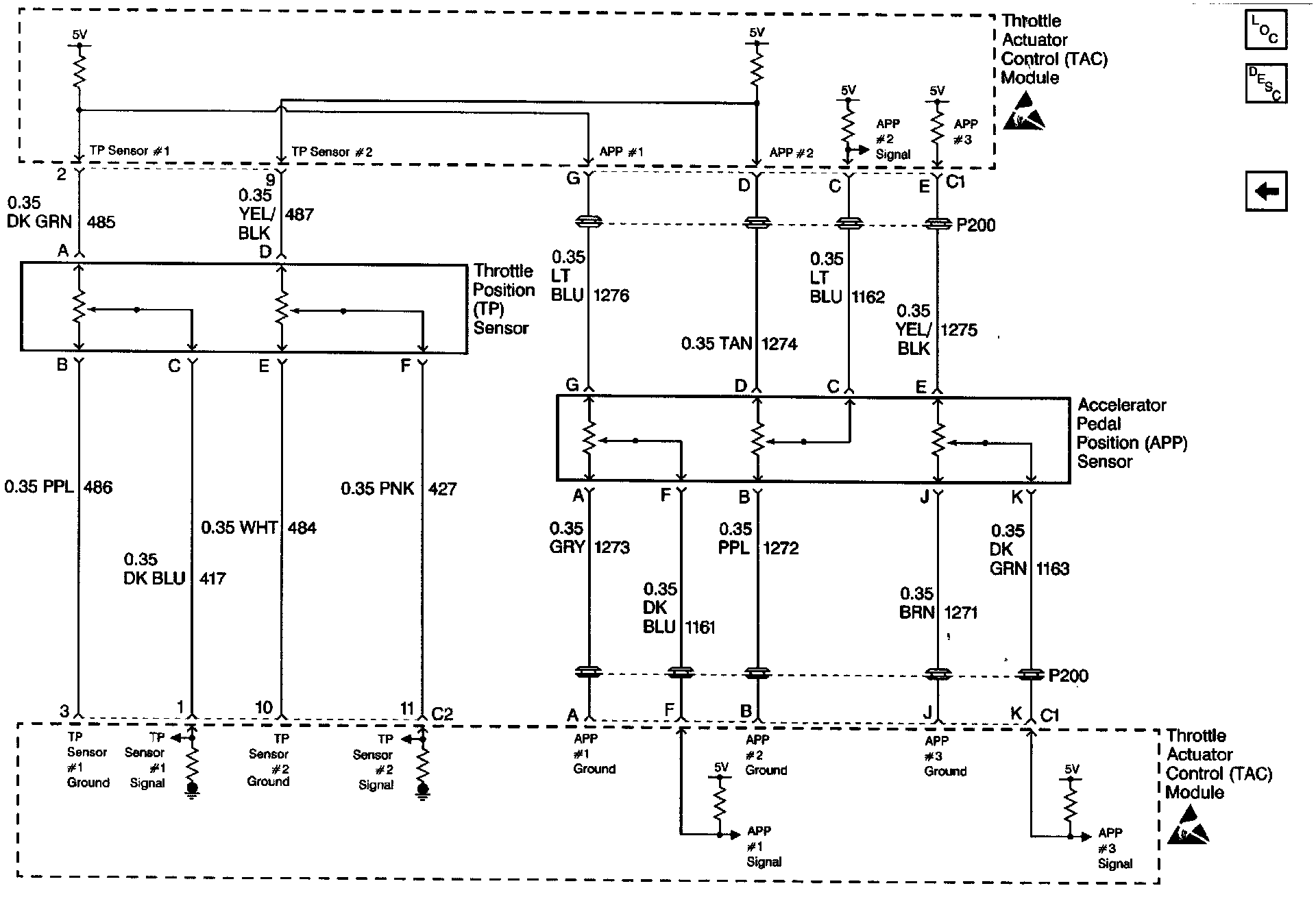

Cruise Control Schematics: TP & APP Sensor Input:
