DCM Power Mirror System, LH
DCM Power Mirror System, LH

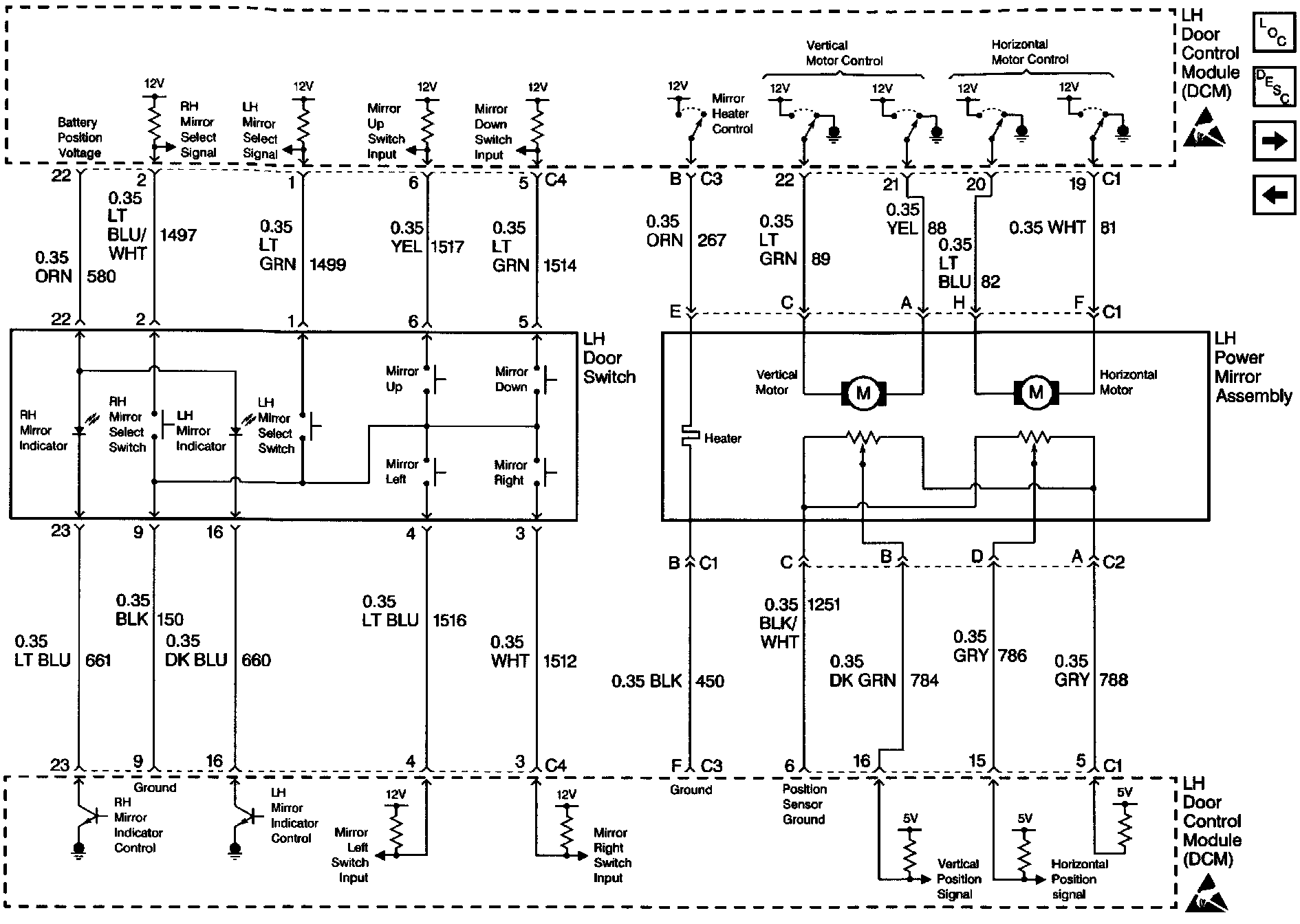

Door Control Module Schematics: LH DCM Power Mirror System:
