DCM Window & Mirror System, RH
DCM Window & Mirror System, RH

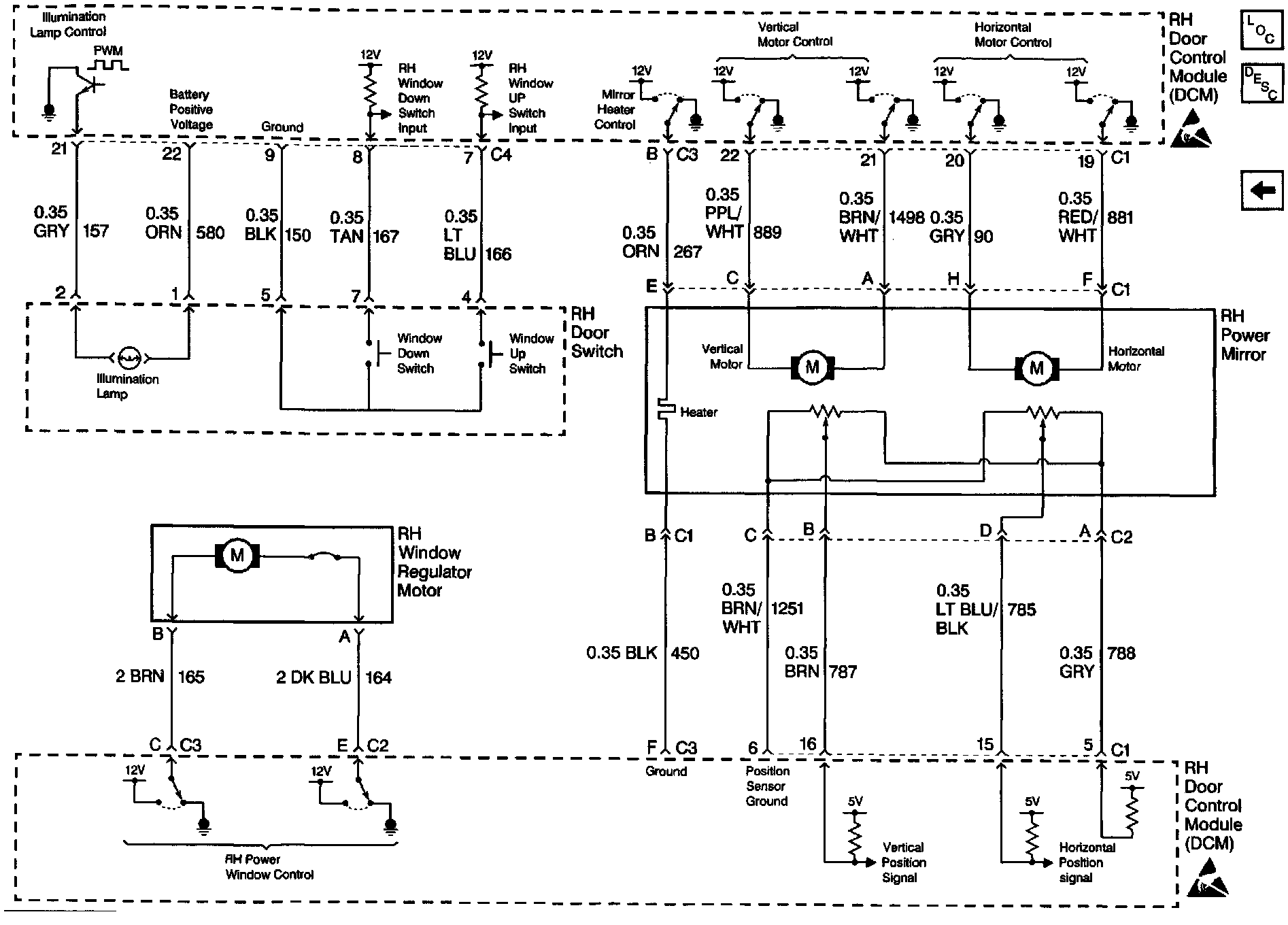

Door Control Module Schematics: RH DCM Window & Mirror System:
