LH DCM Power, Ground, DLC & Lock System
LH DCM Power, Ground, DLC & Lock System

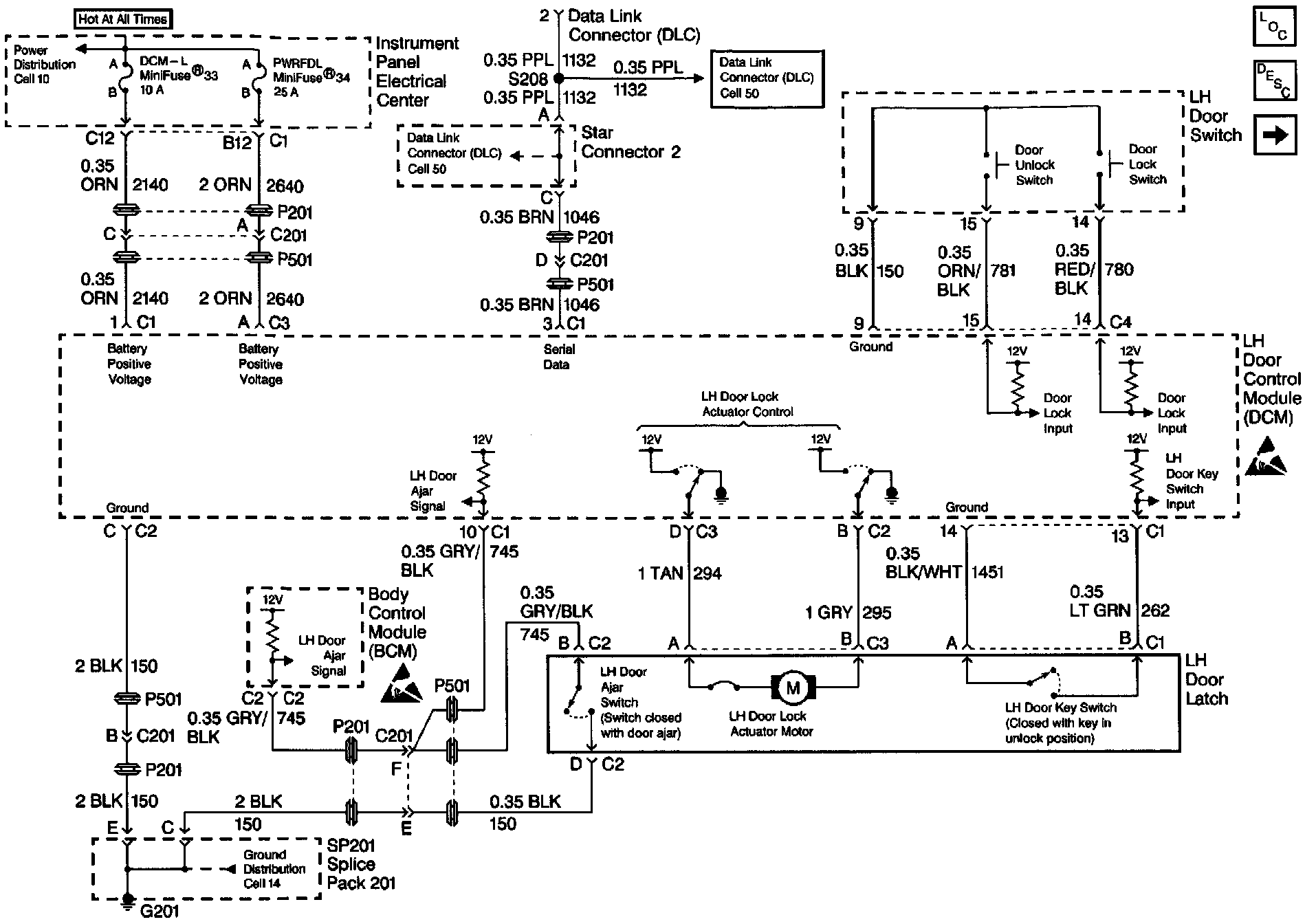

Door Control Module Schematics: LH DCM Power, Ground, DLC & Lock System:
