Operation CHARM: Car repair manuals for everyone.
Home >> Chevrolet >> 1997 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Automatic Air Conditioning (Includes Electronic and Dual Zone)

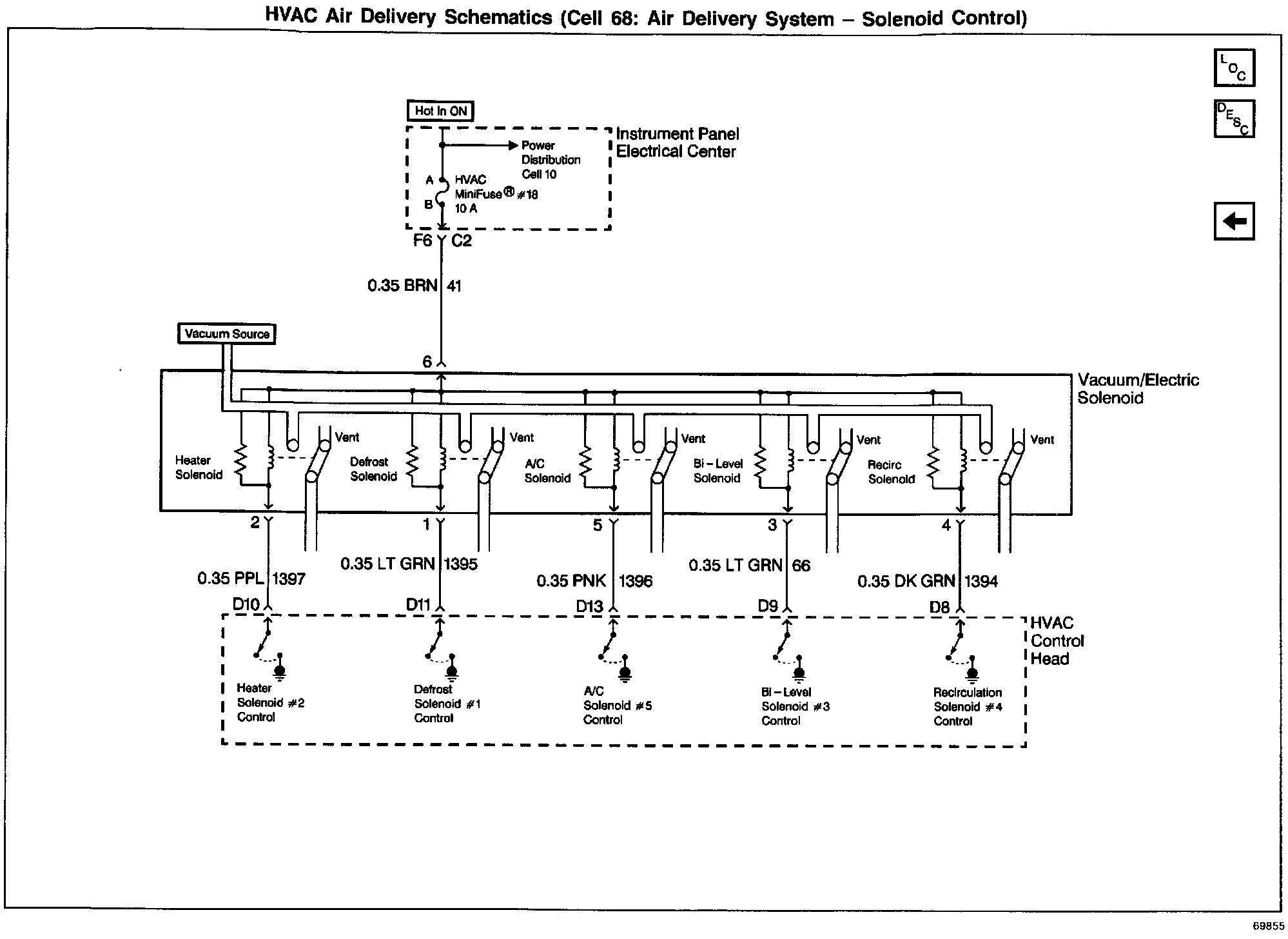

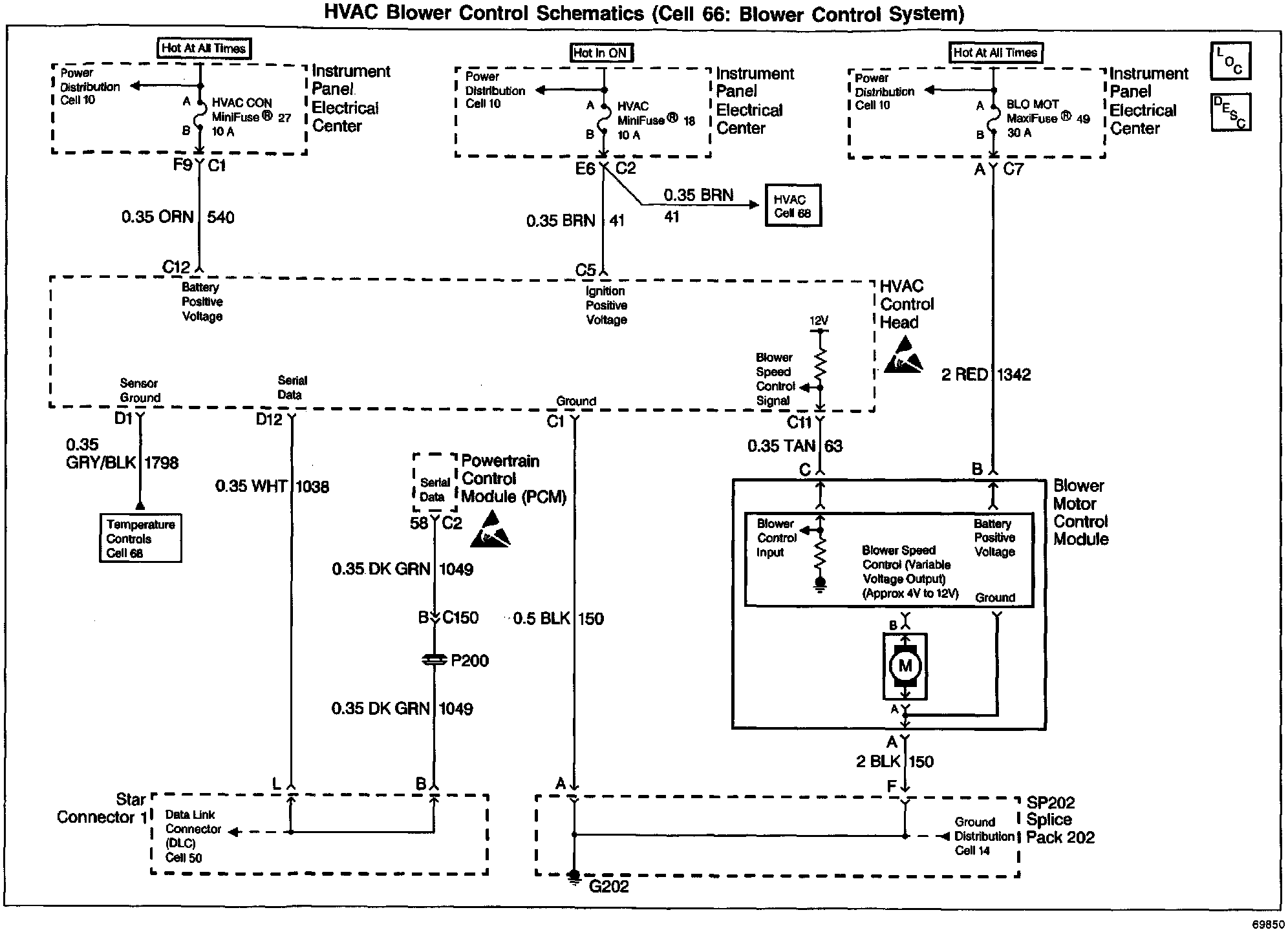

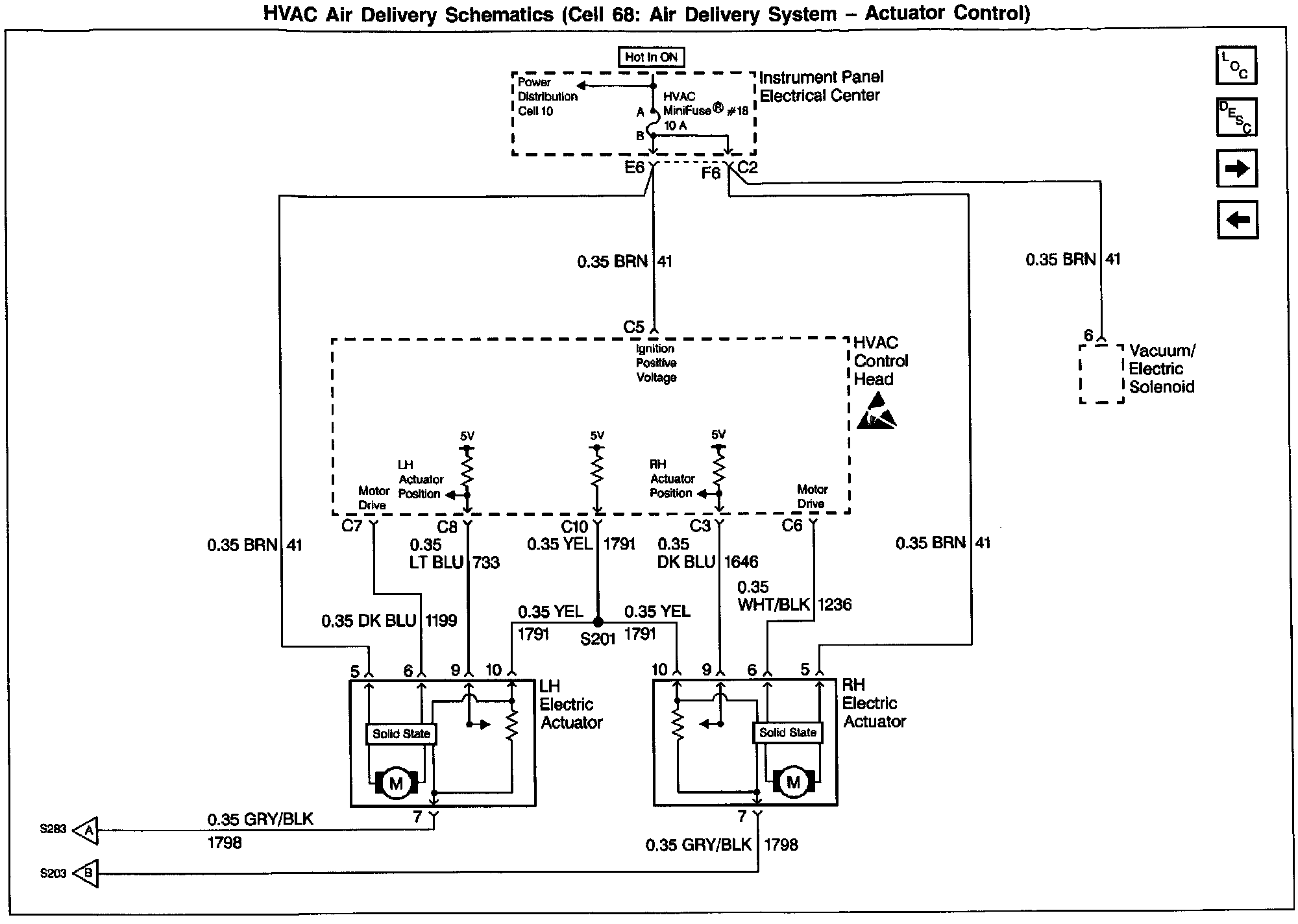

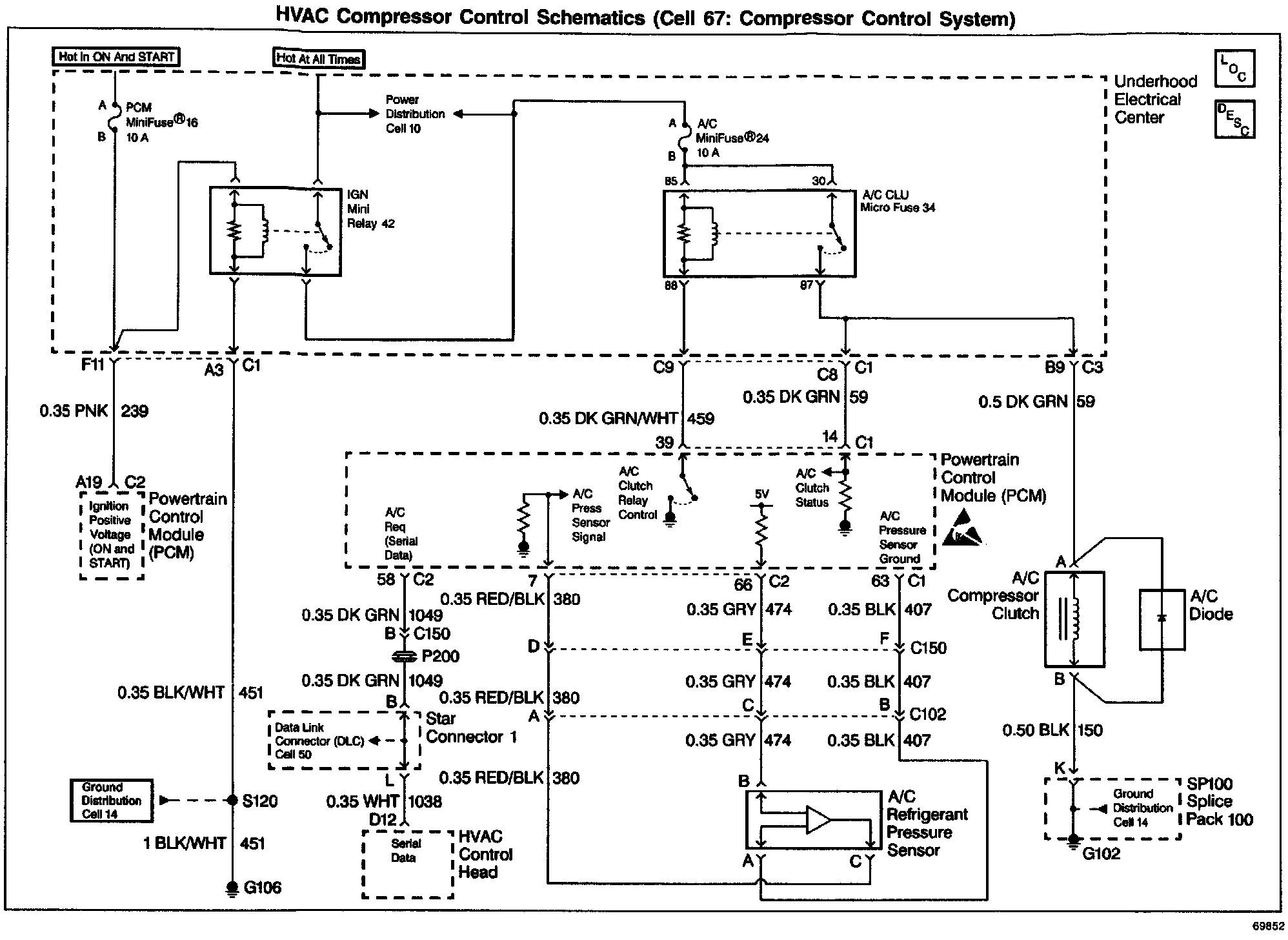

Automatic Air Conditioning (Includes Electronic and Dual Zone)
