System Diagram

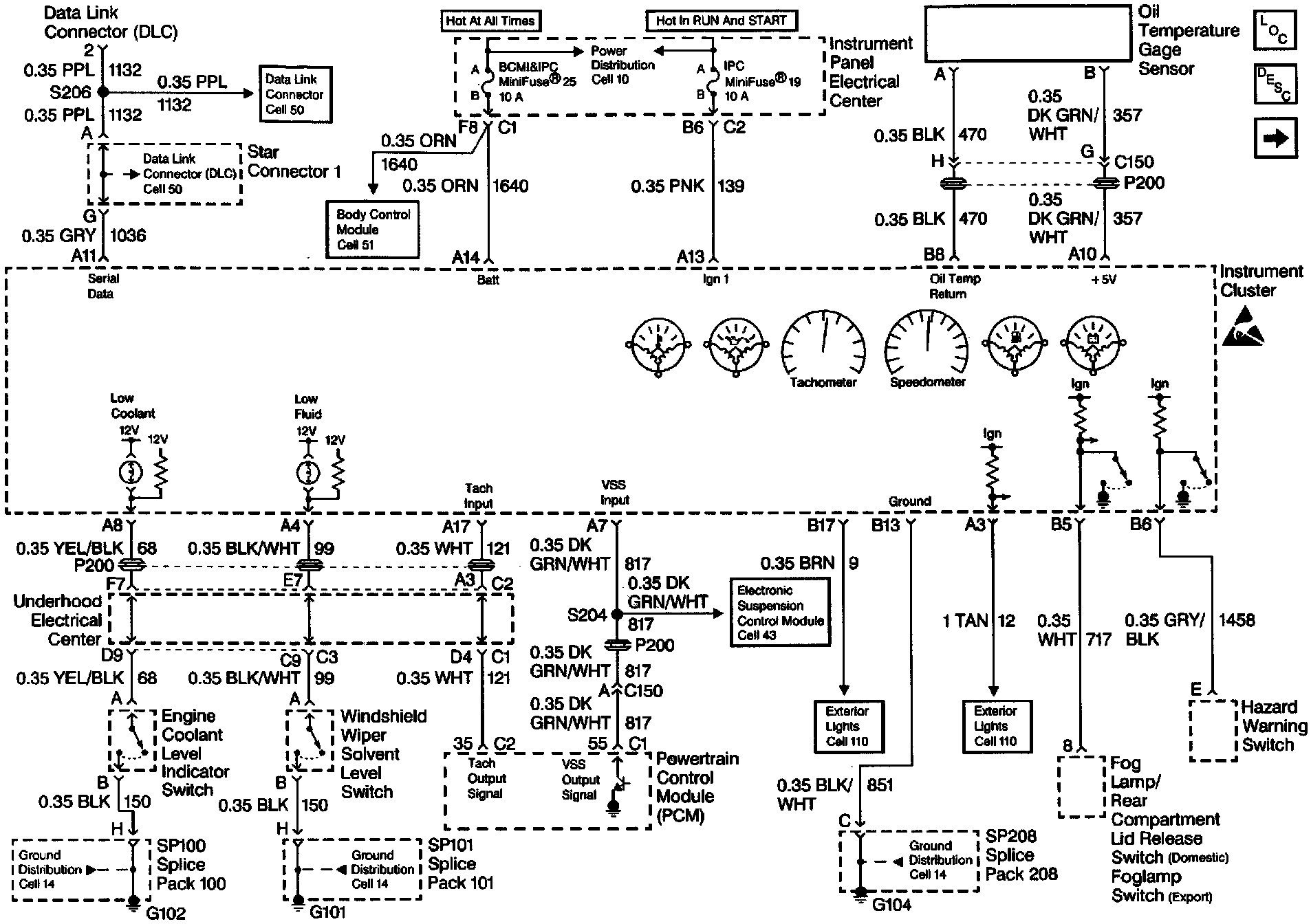

Instrument Cluster: Analog Schematics (Instrumentation And Driver Information) (Part 1 Of 2):

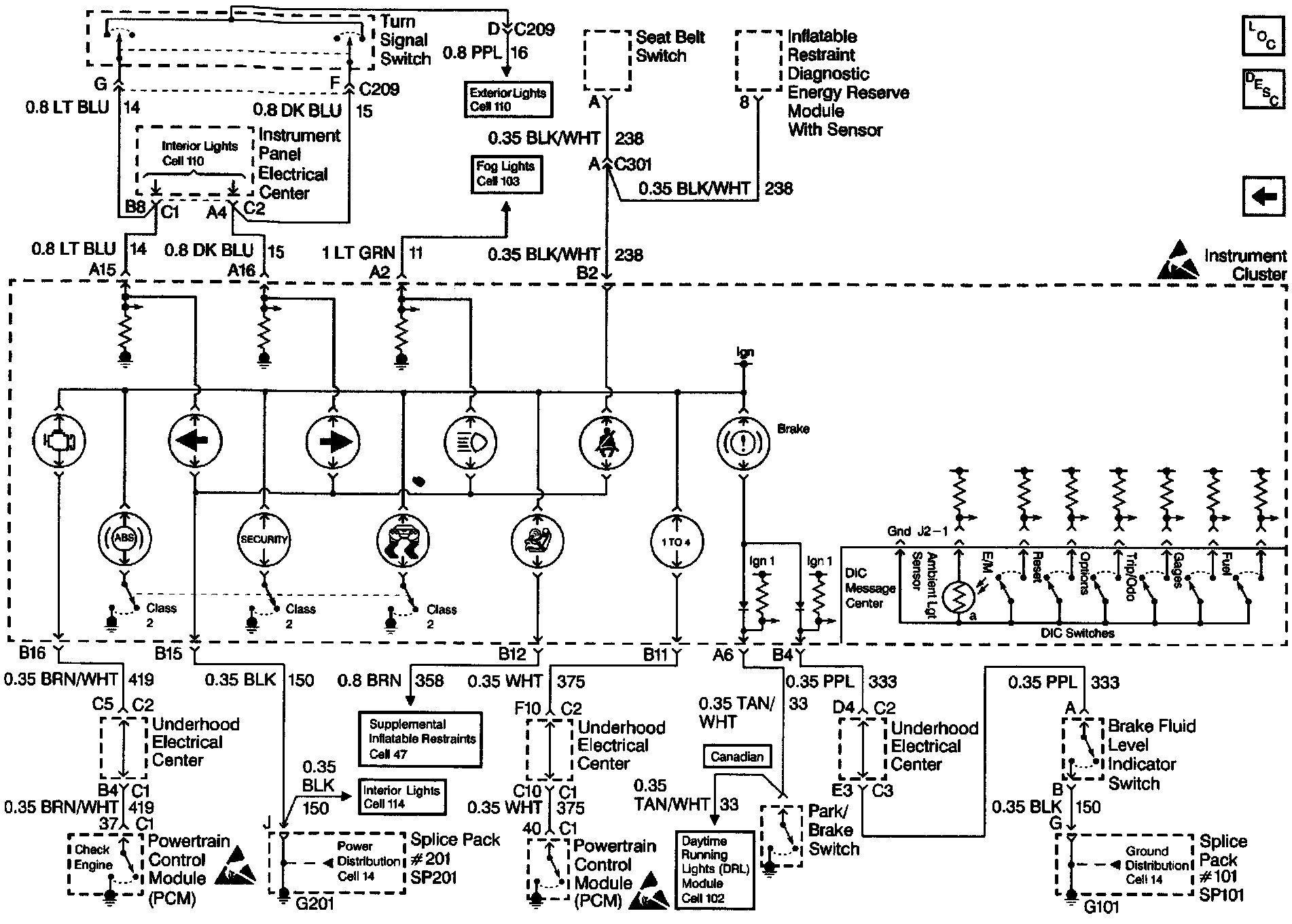

Instrument Cluster: Analog Schematics (Instrumentation And Driver Information) (Part 2 Of 2):
