Home >> Chevrolet >> 1997 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Suspension Control ( Automatic - Electronic ) >> Suspension Controls (Cell 43: Power, Ground and DLC)

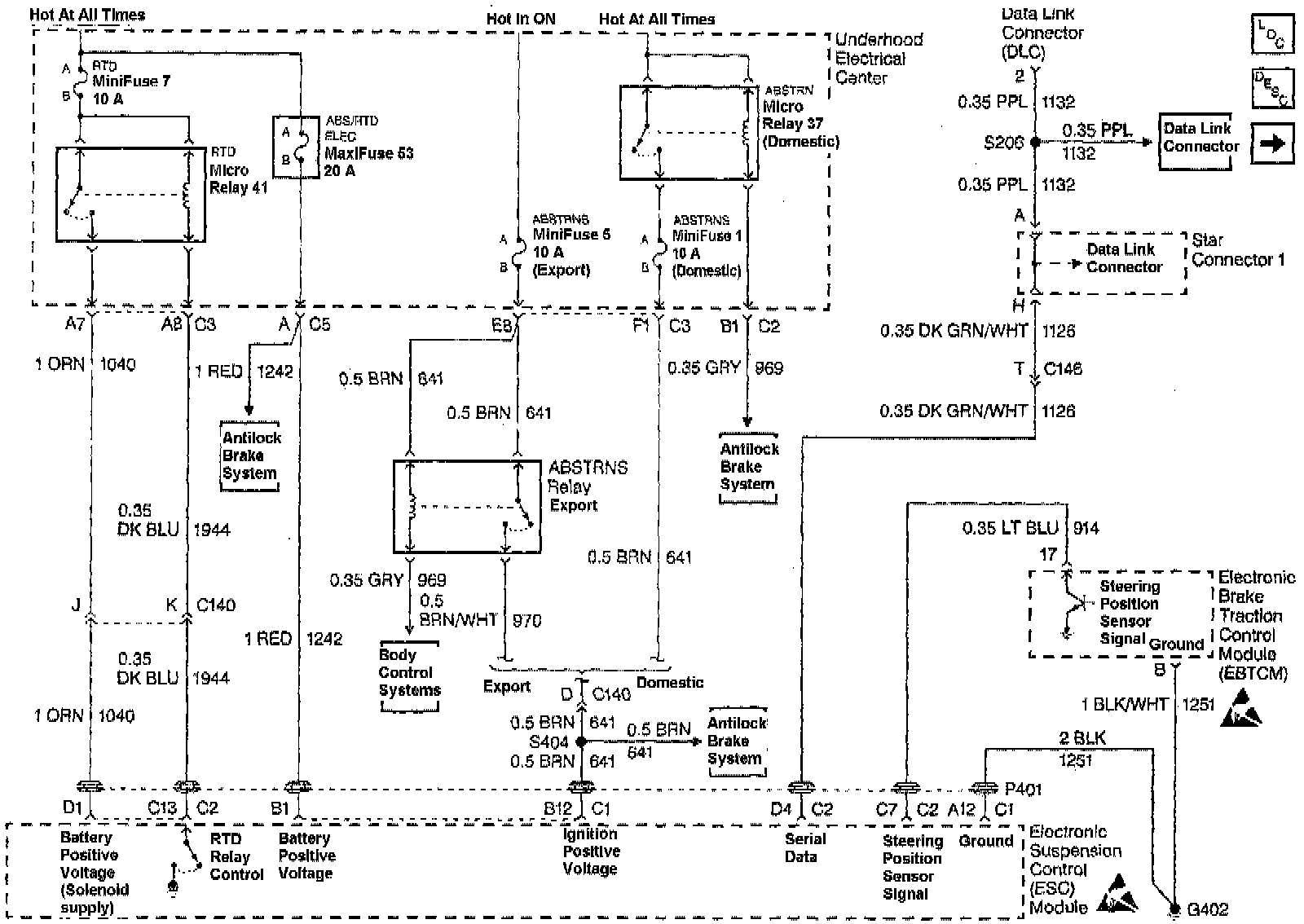

Suspension Controls (Cell 43: Power, Ground and DLC)
