Home >> Chevrolet >> 1997 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Manual Transmission/Transaxle >> Extension Housing

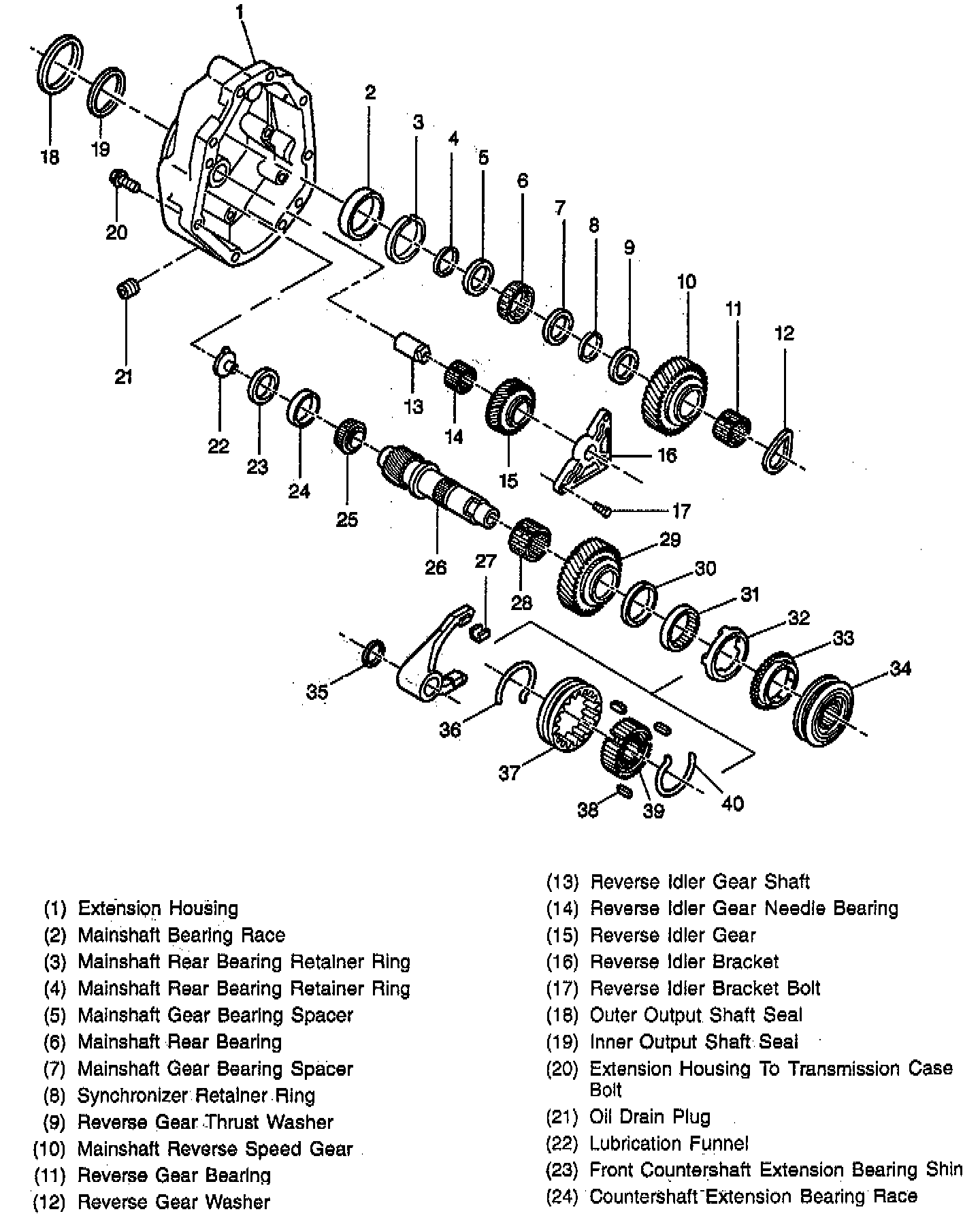

Extension Housing

Part 1 Of 2:

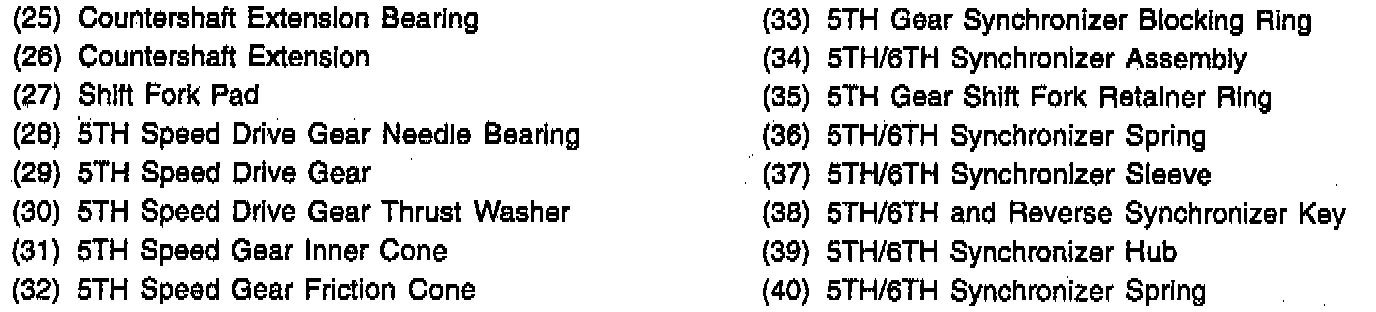

Part 2 Of 2:
