Fastener Tightening Specifications - Cylinder Head

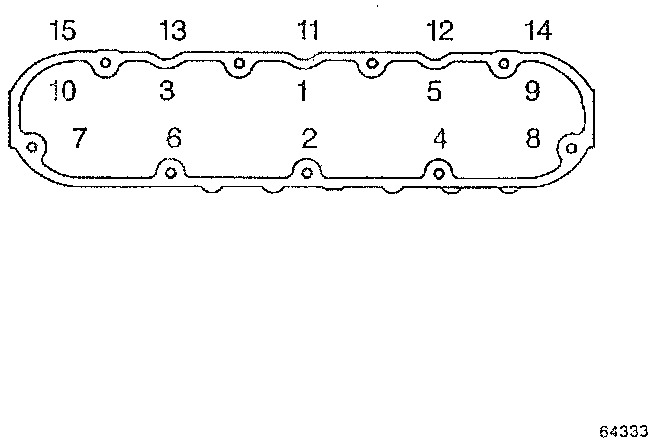

Cylinder Head Bolt Tightening Sequence:

Head Bolts
Tighten the cylinder head bolts sequentially in five steps.

1st step bolts 1-10 torque: 30 Nm (22 lb ft)
2nd step bolts 1-10 additional 76 degrees
3rd step bolts 1-8 additional 76 degrees
4th step bolts 9 and 10 additional 34 degrees
5th step bolts 11-15 torque [1]: 30 Nm (22 lb ft)

[1] Alternate side to side.
