Compressor Mounting Bracket

REMOVAL PROCEDURE

1. Remove the compressor from the vehicle. Refer to Compressor (Replacement).

2. Remove the compressor bracket mounting bolt.

3. Remove the compressor bracket from the vehicle.

INSTALLATION PROCEDURE

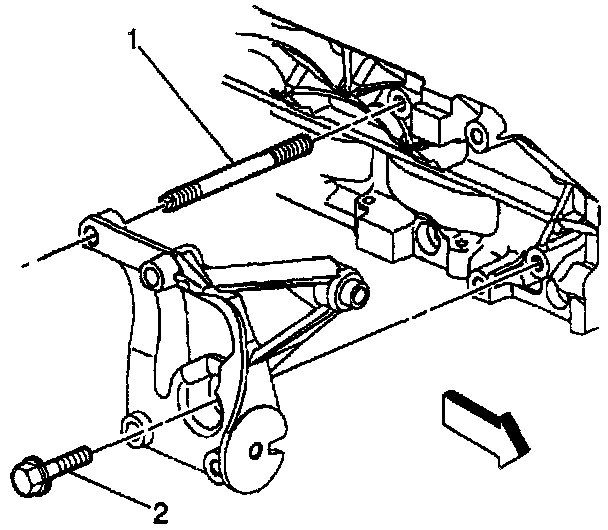

1. Install the compressor mounting stud (1).

2. Install the compressor bracket onto the compressor stud.

3. Install the compressor bracket mounting bolt

NOTICE: Refer to Fastener Notice in Service Precautions.

- Tighten the compressor bracket mounting bolt to 50 mm (37 lb. ft).

4. Remove the compressor mounting stud.

5. Install the compressor into the vehicle. Refer to Compressor (Replacement).
