Door/Trunk Ajar Indicator/Lamp: Diagrams

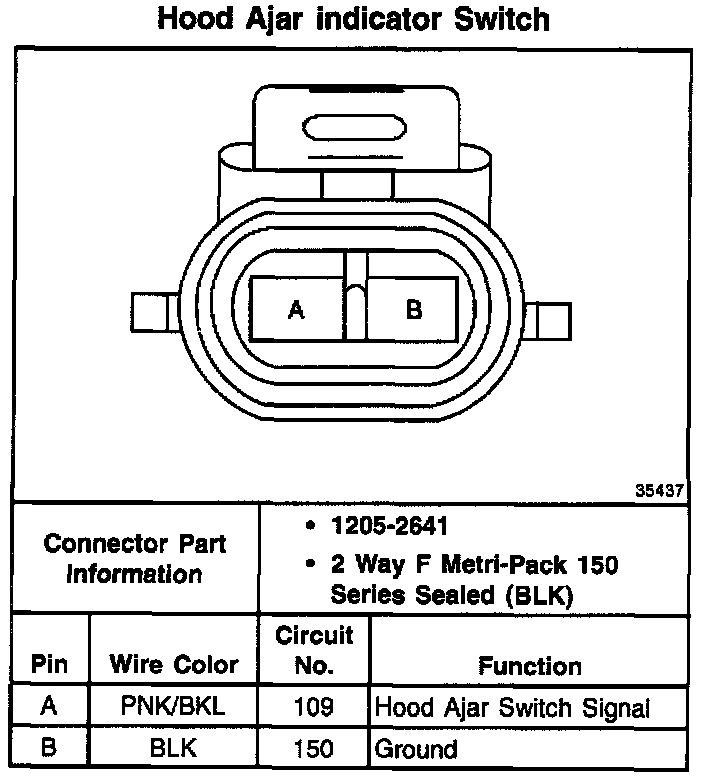

Hood Ajar Indicator Switch:
LH Door Ajar Indicator Switch:

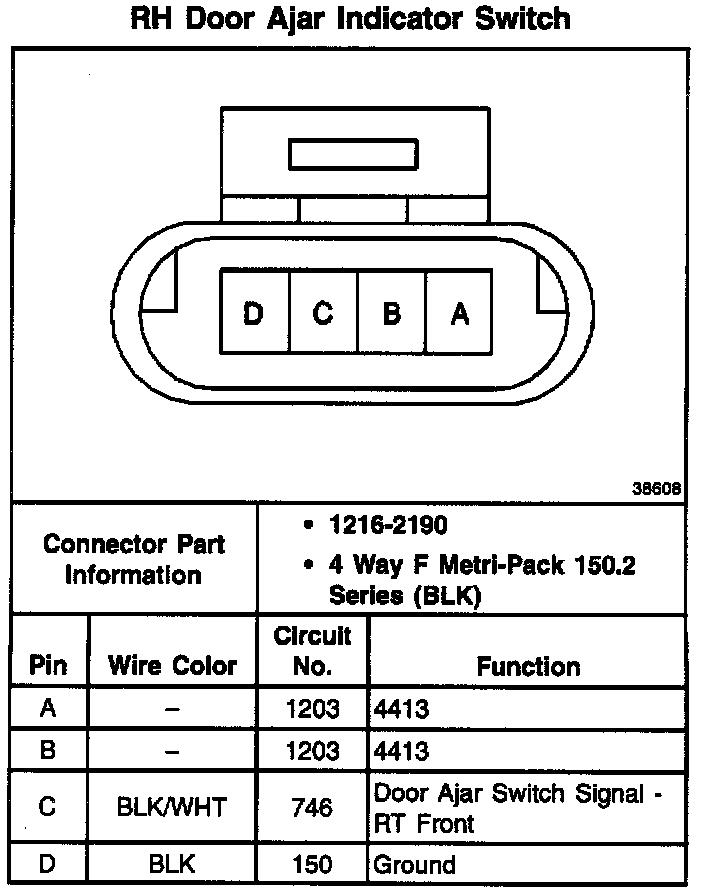

RH Door Ajar Indicator Switch:
