Driver Information Center Switch Replacement
REMOVAL PROCEDURENOTE: Whenever the Instrument Panel Cluster (IPC) is removed from the vehicle, DO NOT set the IPC on its face for more than 15 minutes or damage to the fluid filled air core gages may result.
Driver Information Center Switch Replacement: Removal Procedure:
1. Remove the Instrument Panel Cluster (IPC) from the vehicle.

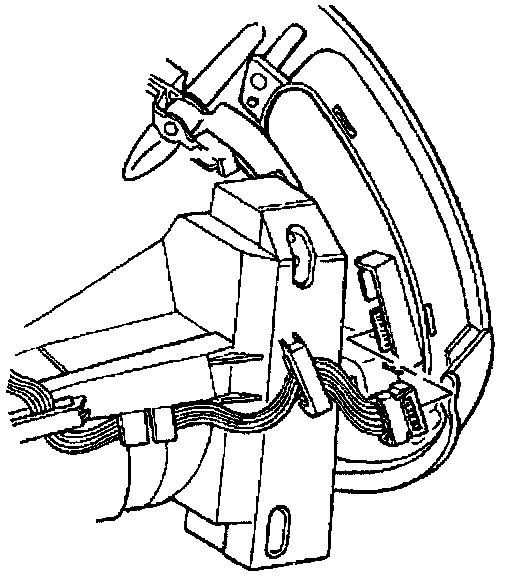

2. Disconnect the Instrument Panel (I/P) dimmer switch electrical connector.
Driver Information Center Switch Replacement: Removal Procedure:
3. Disconnect the Driver Information Center (DIC) switch electrical connector.
Driver Information Center Switch Replacement: Removal Procedure:

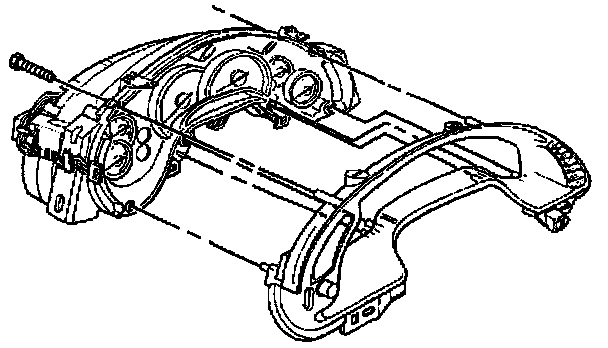

4. Remove the I/P cluster bezel retaining screws.
5. Remove the bezel from the IPC.
Driver Information Center Switch Replacement: Removal Procedure:

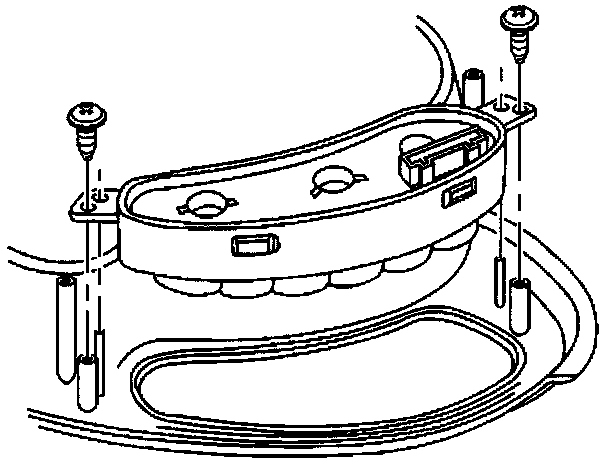

6. Remove the DIC switch retaining screws.
7. Remove the DIC switch.
INSTALLATION PROCEDURE
Driver Information Center Switch Replacement: Installation Procedure:

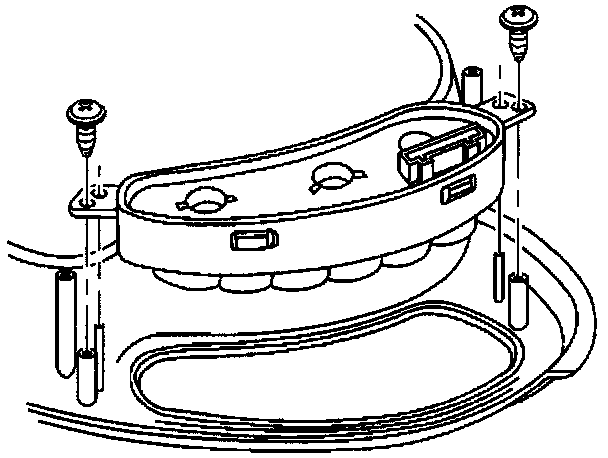

1. Install the DIC switch to the I/P cluster bezel.
2. Install the DIC switch retaining screws.
Tighten
Tighten the DIC switch retaining screws to 1.5 N.m (13 lb in).
NOTE: Refer to Fastener Notice in General Information.
Driver Information Center Switch Replacement: Installation Procedure:

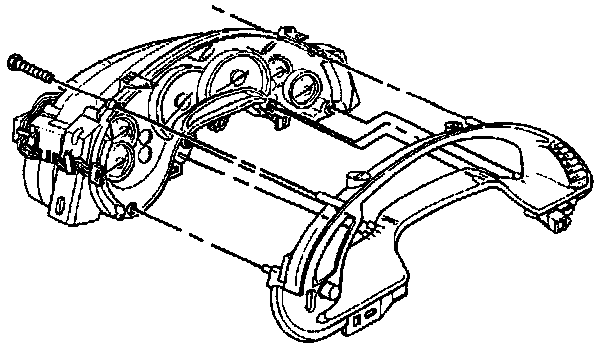

3. Install the bezel to the IPC. Align the bezel onto the guide pins.
4. Install the I/P cluster bezel retaining screws.
Tighten
Tighten the I/P cluster bezel retaining screws to 1.5 N.m (13 lb in).
Driver Information Center Switch Replacement: Installation Procedure:

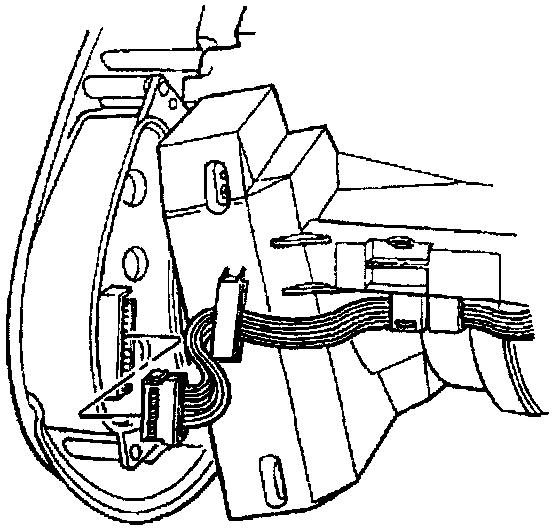

5. Connect the I/P dimmer switch electrical connector.
Driver Information Center Switch Replacement: Installation Procedure:
6. Connect the DIC switch electrical connector.
7. Install the IPC to the vehicle.
