I/P Electrical Center DRL R Relay Circuit Location

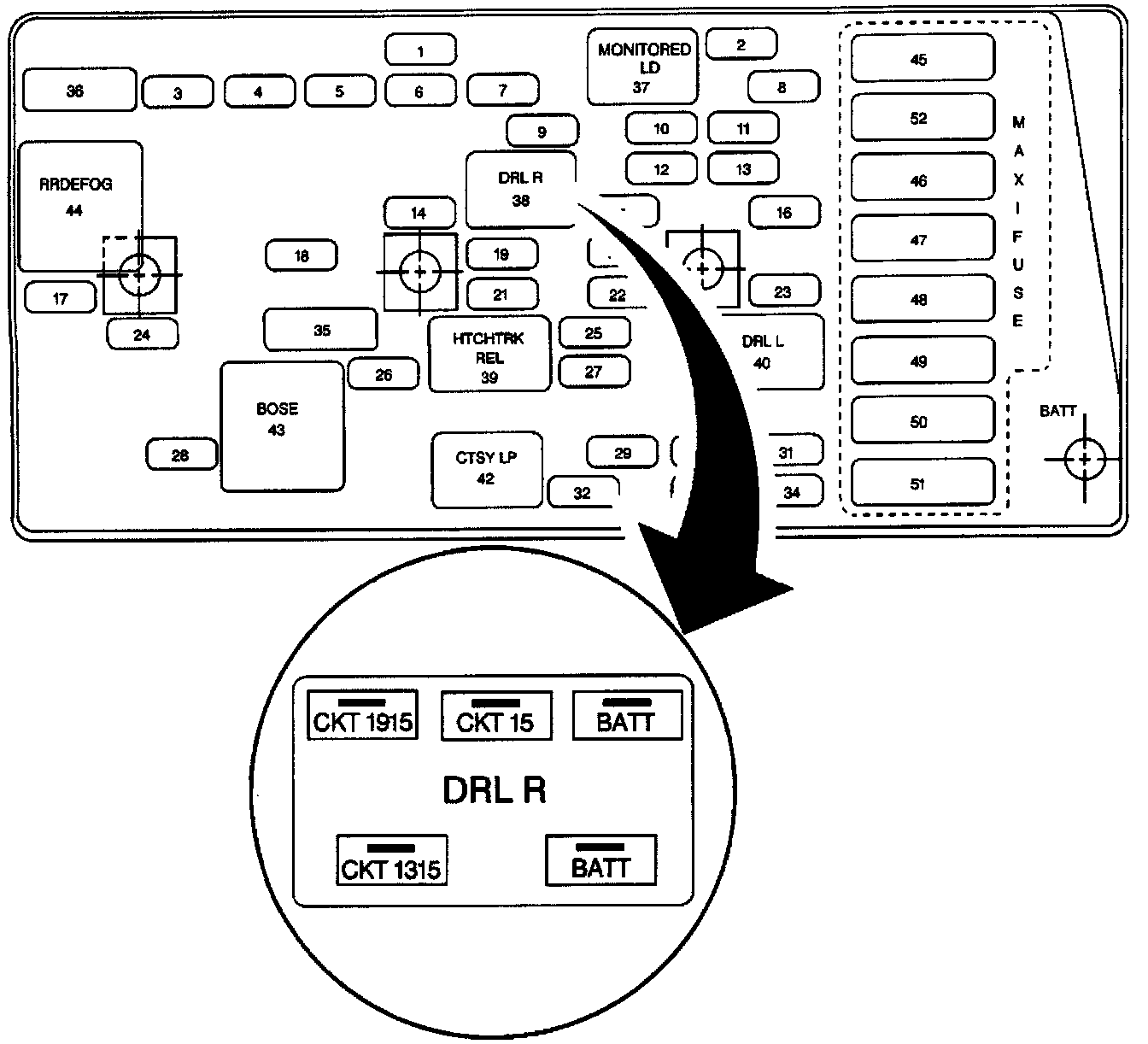

I/P Electrical Center DRL R Relay Circuit Location (Part 1 Of 2):

I/P Electrical Center DRL R Relay Circuit Location (Part 2 Of 2):
