Fog Lamp Replacement (Bulb)
REMOVAL PROCEDUREFog Lamp Replacement (Bulb): Removal Procedure:
1. Raise and suitably support the vehicle. Refer to Vehicle Lifting and jacking in General Information.
2. Remove the front fascia lower closeout panel.

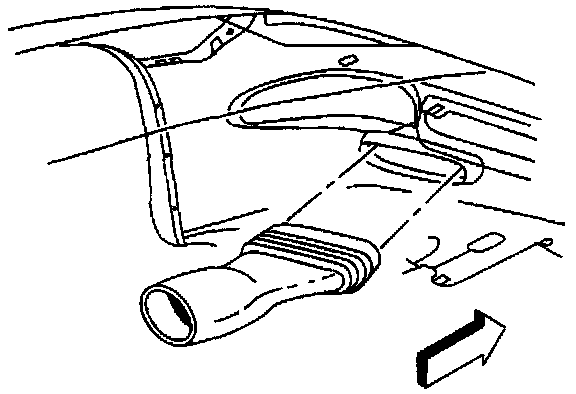

3. Release the brake caliper cooling duct from the front fascia, then reposition the duct.
Fog Lamp Replacement (Bulb): Removal Procedure:

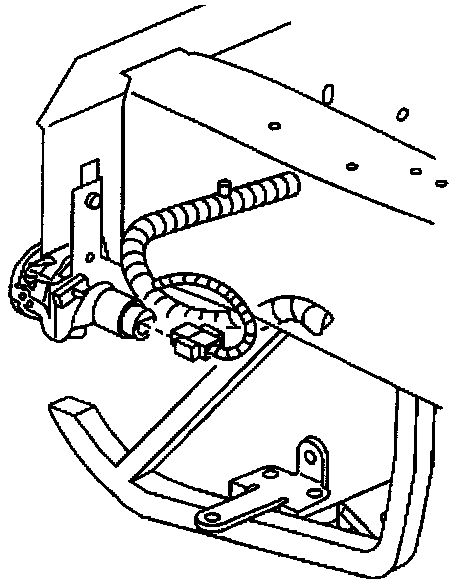

4. Disconnect the front fog lamp electrical connector.
Fog Lamp Replacement (Bulb): Removal Procedure:

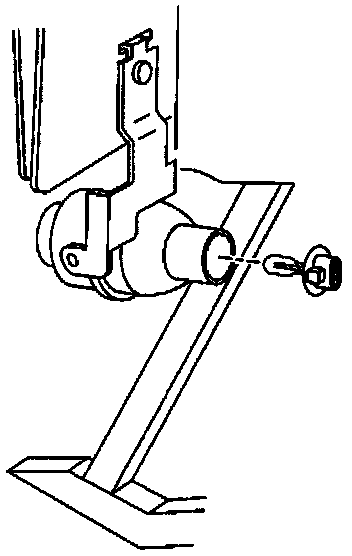

5. Remove the fog lamp bulb from the fog lamp.
INSTALLATION PROCEDURE
Fog Lamp Replacement (Bulb): Installation Procedure:

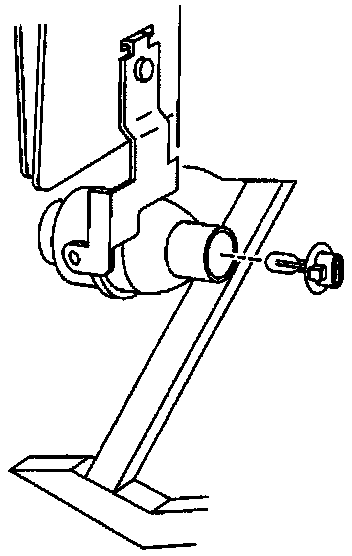

1. Install the fog lamp bulb to the fog lamp assembly.
Fog Lamp Replacement (Bulb): Installation Procedure:
2. Connect the front fog lamp electrical connector.
Fog Lamp Replacement (Bulb): Installation Procedure:

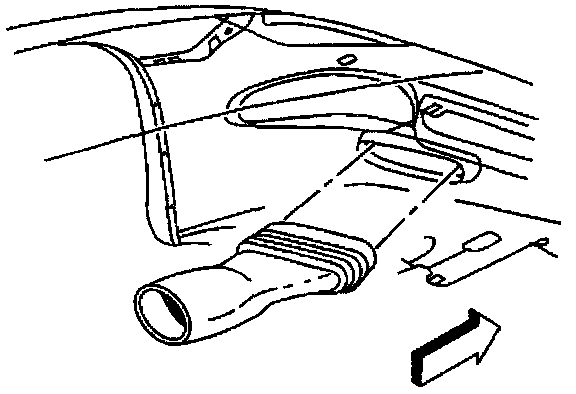

3. Position the brake caliper cooling duct to the front fascia, then push to secure.
4. Install the front fascia lower closeout panel.
5. Lower the vehicle.
6. Verify that the front fog lamps are aimed properly.
