Headlamp Aiming Procedure (Export, RH Rule of the Road)

ADJUSTMENT PROCEDURE
1. Prepare the aiming screen and the vehicle for headlamp aiming. Refer to Headlamp Aiming Procedure (Screen Method).
2. Raise the hood.
3. Raise the headlamps.

Headlamp Aiming Procedure (Export, RH Rule Of The Road): Adjustment Procedure:

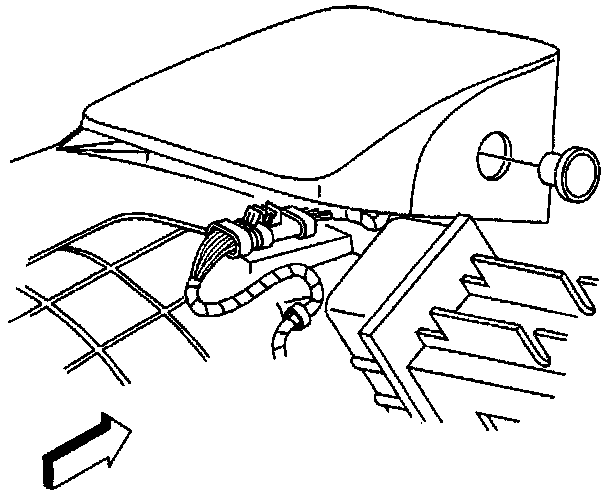

4. Remove the headlamp adjustment screw plug from the headlamp bezel. Reach under the headlamp bezel and push out the plug from behind.

Headlamp Aiming Procedure (Export, RH Rule Of The Road): Adjustment Procedure:

5. Turn ON to the low beam lamps.
6. Inspect the horizontal aim.

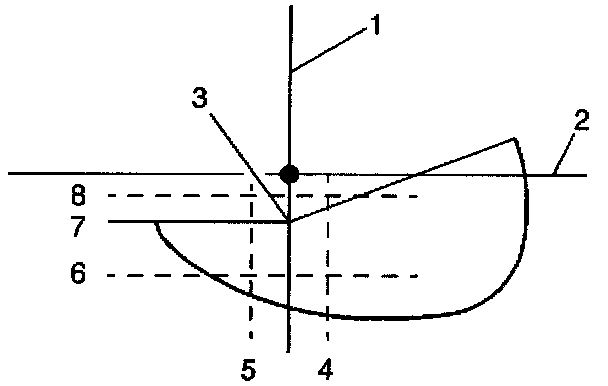

7. Adjust the aim using the horizontal adjusting screw, to align the break point (3) of the high intensity zone to the headlamp vertical centerline (1), within the range of 38 mm (1.5 in) to the left (5) of the lamp vertical centerline (1), to 38 mm (1.5 in) to the right (4) of the lamp vertical centerline (1) on the aiming screen.
8. Inspect the vertical aim.
9. Adjust the aim using the vertical adjusting screw, to align the upper edge of the beam horizontal cut off line 114 mm (4.5 in) below (7) the headlamp horizontal centerline (2), within the range of 76 mm (3 in) below (8) the lamp horizontal centerline (2), to 191 mm (7.5 in) below (6) the lamp horizontal centerline (2) on the aiming screen.

Headlamp Aiming Procedure (Export, RH Rule Of The Road): Adjustment Procedure:

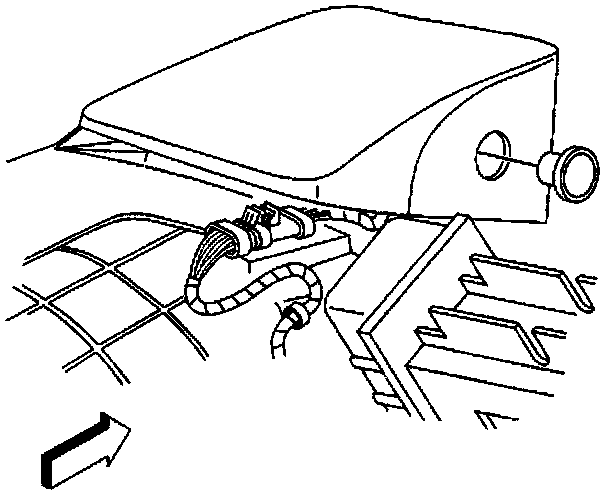

10. Install the headlamp adjustment screw plug. Push to secure.
11. Turn OFF the headlamps.
12. Lower the hood.
