Headlamp Capsule Replacement
REMOVAL PROCEDUREHeadlamp Capsule Replacement: Removal Procedure:

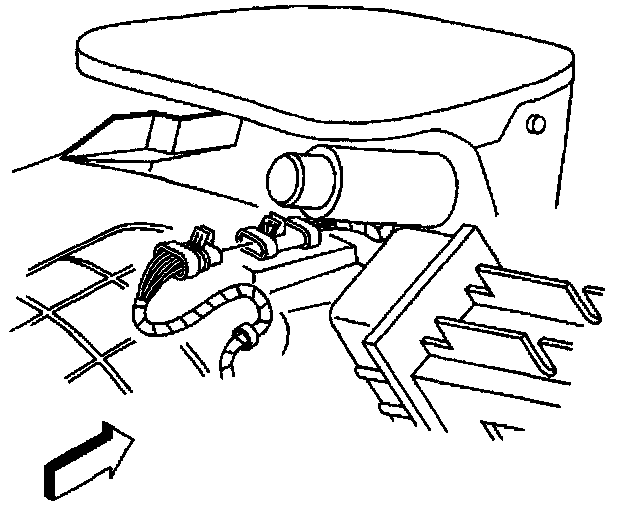

1. Open the hood.
2. Raise the headlamp manually. Turn the headlamp actuator manual control knob counter clockwise.
3. Disconnect the headlamp wiring harness electrical connector from the forward lamp wiring harness.
Headlamp Capsule Replacement: Removal Procedure:
4. Remove the headlamp bezel.
IMPORTANT: Support the headlamp capsule while removing the retaining screws.

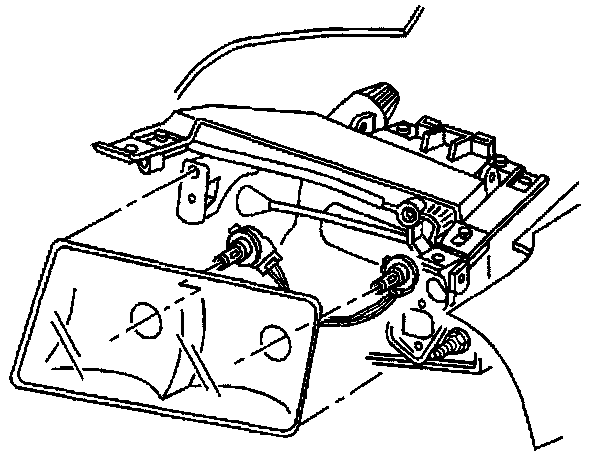

5. Remove the headlamp capsule retaining screws.
6. Disconnect the headlamp bulb electrical connectors.
7. Remove the capsule from the headlamp pivot and adjusting bracket.
8. Remove the headlamp bulbs from the capsule, if necessary.
INSTALLATION PROCEDURE
Headlamp Capsule Replacement: Installation Procedure:
1. Install the headlamp bulbs to the headlamp capsule, if removed.
2. Connect the headlamp bulb electrical connectors.
3. Position the headlamp capsule to the headlamp pivot and adjustment bracket.
4. Install the capsule retaining screws.
Tighten
Tighten the headlamp capsule retaining screws to 3.5 N.m (31 lb in).
NOTE: Refer to Fastener Notice in General Information.
5. Install the headlamp bezel.
Headlamp Capsule Replacement: Installation Procedure:
6. Connect the headlamp wiring harness electrical connector to the forward lamp wiring harness.
7. Lower the headlamp manually. Turn the headlamp actuator manual control knob clockwise.
8. Close the hood.
9. Check headlamp aim.
^ To check the aim of the headlamps using the screen method.
^ To check the aim of the headlamps using the mechanical method.
