Front Position Lamp Replacement (Assembly Europe, Japan)
REMOVAL PROCEDUREFront Position Lamp Replacement (Assembly Europe, Japan): Removal Procedure:
1. Raise and suitably support the vehicle. Refer to Vehicle Lifting and Jacking in General Information.
2. Remove the front fascia lower closeout panel.

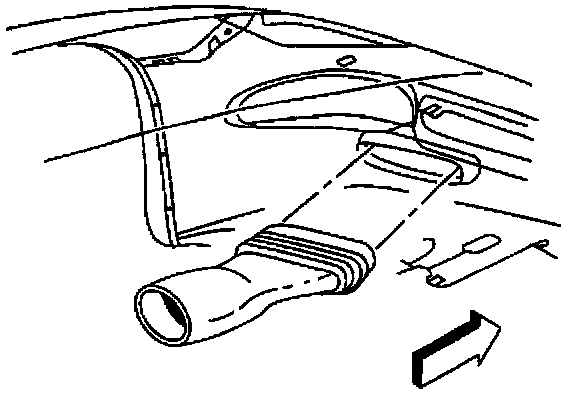

3. Release the brake caliper cooling duct from the front fascia, then reposition the duct.
Front Position Lamp Replacement (Assembly Europe, Japan): Removal Procedure:
4. Unlatch and open the lamp access door on top of the front fascia closeout.

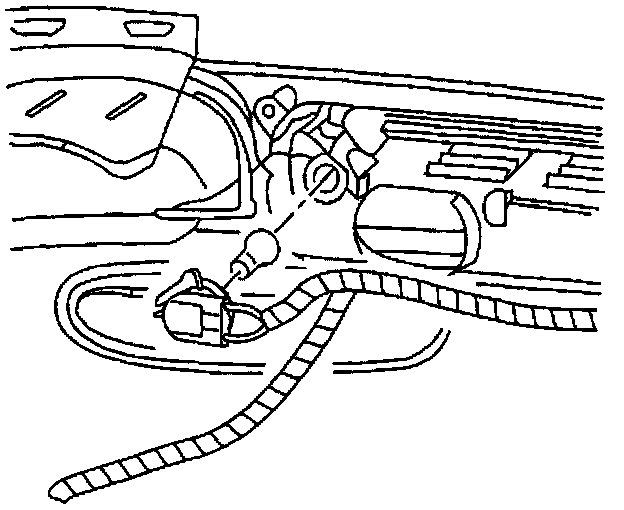

5. Remove the front position lamp socket from the lamp assembly.
Front Position Lamp Replacement (Assembly Europe, Japan): Removal Procedure:

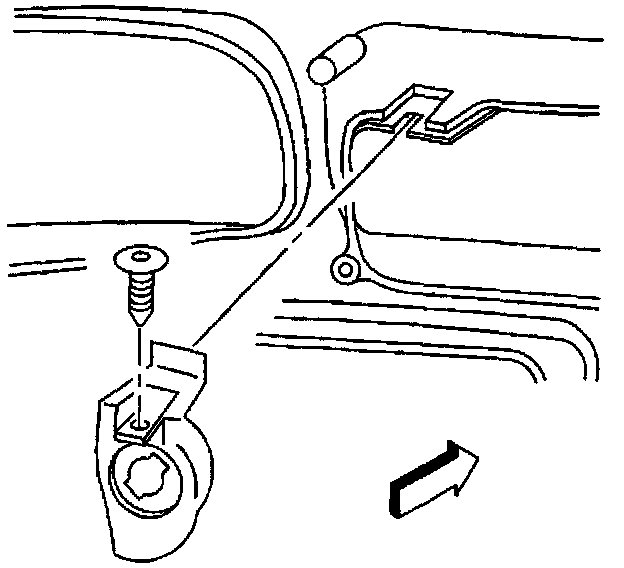

6. Remove the front position lamp retaining screw.
7. Remove the front position lamp assembly.
INSTALLATION PROCEDURE
Front Position Lamp Replacement (Assembly Europe, Japan): Installation Procedure:
1. Position the front position lamp to the front fascia.

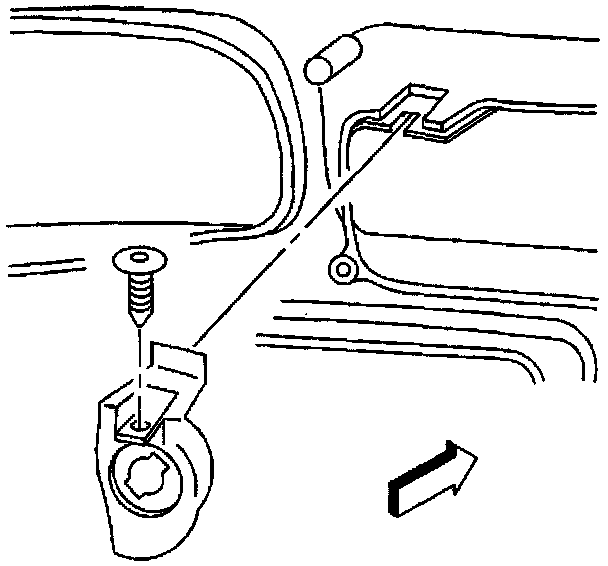

2. Install the front position lamp retaining screw.
Tighten
Tighten the front position lamp retaining screw to 2.0 N.m (18 lb in).
NOTE: Refer to Fastener Notice in General Information.
Front Position Lamp Replacement (Assembly Europe, Japan): Installation Procedure:
3. Install the socket to the lamp.
4. Close the lamp access door on top of the front fascia closeout and secure the latch.
Front Position Lamp Replacement (Assembly Europe, Japan): Installation Procedure:

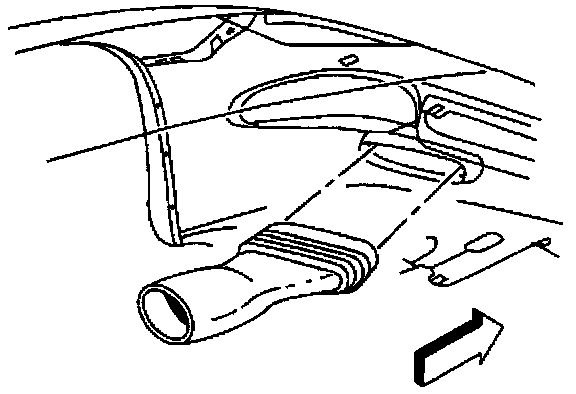

5. Position the brake caliper cooling duct to the front fascia and push to secure.
6. Install the front fascia lower closeout panel.
7. Lower the vehicle.
