Front Position Lamp Replacement (Bulb Europe, Japan)

REMOVAL PROCEDURE

Front Position Lamp Replacement (Bulb Europe, Japan): Removal Procedure:

1. Raise and suitably support the vehicle. Refer to Vehicle Lifting and Jacking in General Information.
2. Remove the front fascia lower closeout panel.

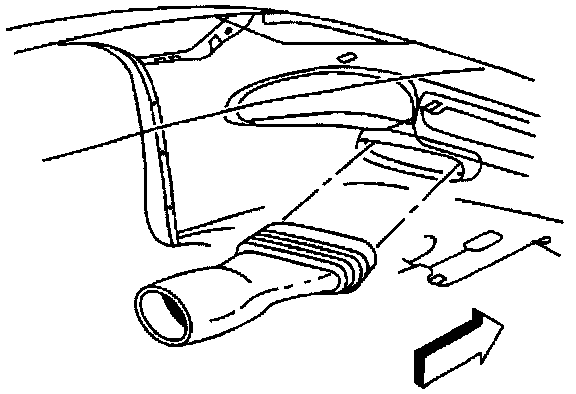

3. Release the brake caliper cooling duct from the front fascia, then reposition the duct.

Front Position Lamp Replacement (Bulb Europe, Japan): Removal Procedure:

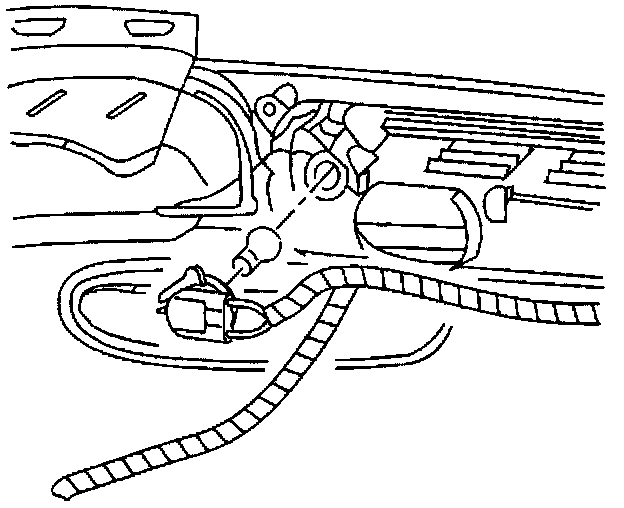

4. Unlatch and open the lamp access door on top of the front fascia closeout.
5. Remove the front position lamp socket from the lamp assembly.
6. Remove the bulb from the socket.

INSTALLATION PROCEDURE

Front Position Lamp Replacement (Bulb Europe, Japan): Installation Procedure:

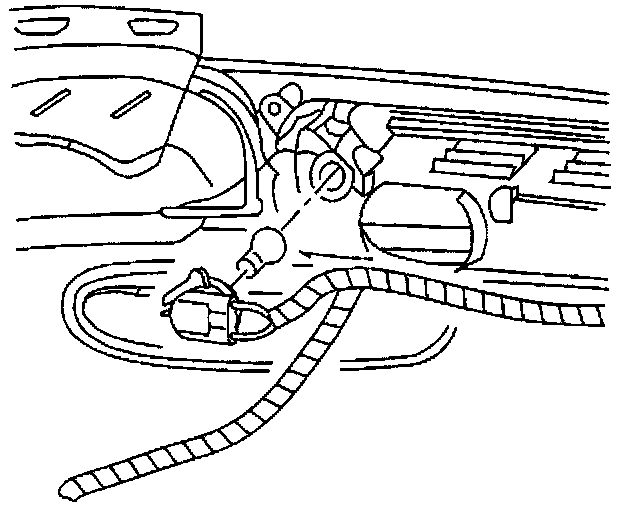

1. Install the bulb to the socket.
2. Install the socket to the lamp.
3. Close the lamp access door on top of the front fascia closeout and secure the latch.

Front Position Lamp Replacement (Bulb Europe, Japan): Installation Procedure:

4. Position the brake caliper cooling duct to the front fascia and push to secure.
5. Install the front fascia lower closeout panel.
