Front Side Repeater Lamp (Bulb Europe, Japan)

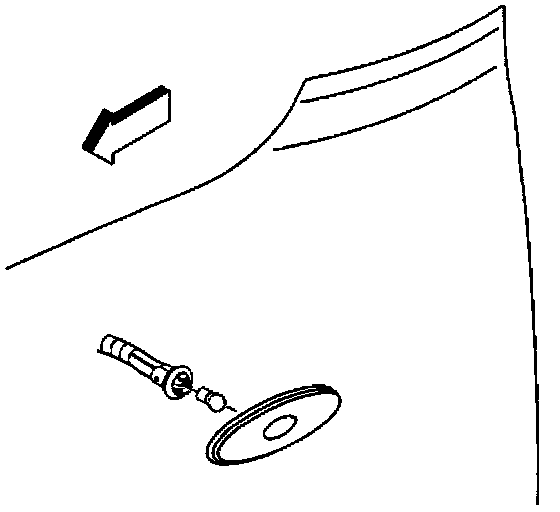

REMOVAL PROCEDURE

Front Side Repeater Lamp (Bulb Europe, Japan): Removal Procedure:

1. Remove the wheelhouse filler panel.
2. Remove the front side repeater lamp socket from the front side repeater lamp assembly.
3. Remove the bulb from the socket.

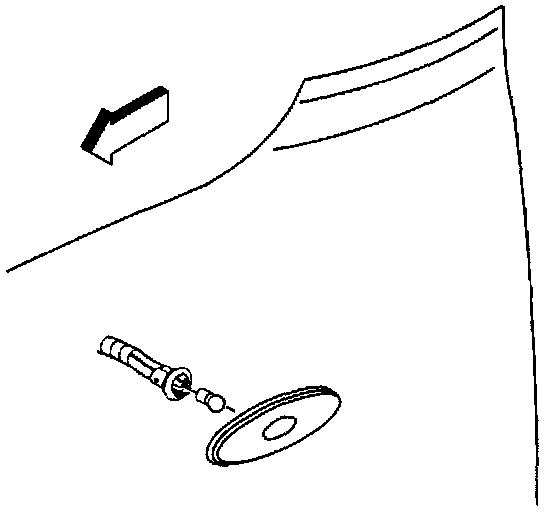

INSTALLATION PROCEDURE

Front Side Repeater Lamp (Bulb Europe, Japan): Installation Procedure:

1. Install the bulb to the socket.
2. Install the socket to the lamp assembly.
3. Install the wheelhouse tiller panel.
