IP Compartment Lamp Replacement (Bulb)

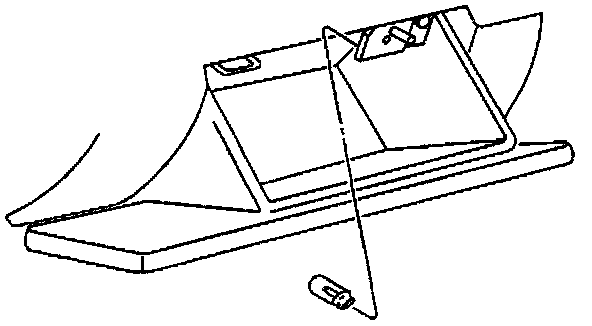

REMOVAL PROCEDURE

IP Compartment Lamp Replacement (Bulb): Removal Procedure:

1. Open the Instrument Panel (I/P) passenger compartment door.
2. Reach behind the I/P compartment lamp switch, grasp the bulb, then pull to remove.

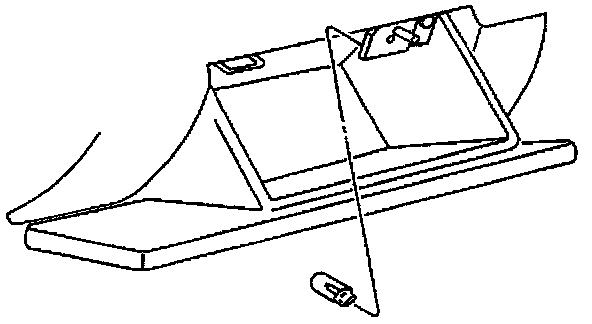

INSTALLATION PROCEDURE

IP Compartment Lamp Replacement (Bulb): Installation Procedure:

1. Install the bulb to the socket in the back of the switch.
2. Close the I/P passenger compartment door.
