IP Compartment Lamp Replacement (Switch)

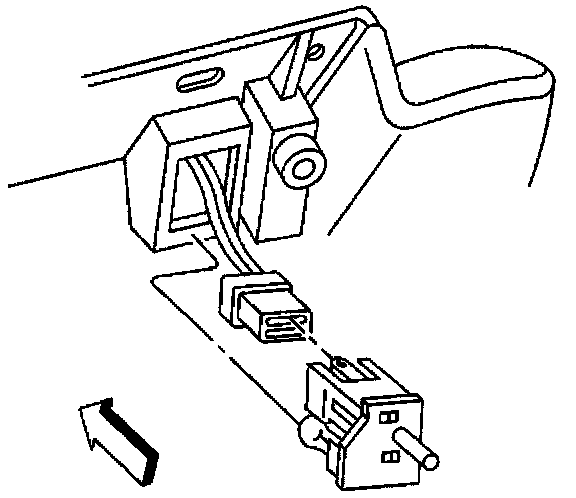

REMOVAL PROCEDURE

IP Compartment Lamp Replacement (Switch): Removal Procedure:

1. Remove the I/P passenger compartment.
2. Depress both side tabs on I/P compartment lamp switch.
3. Carefully push the switch out of the opening and remove.

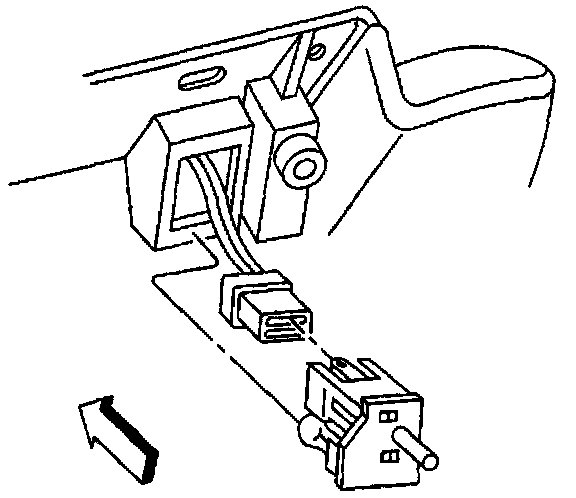

INSTALLATION PROCEDURE

IP Compartment Lamp Replacement (Switch): Installation Procedure:

1. Position the I/P compartment lamp switch into the opening in the I/P passenger compartment.
2. Push to secure the switch.
3. Install the I/P passenger compartment.
