Rear Lift Window Panel Latch Adjustment

ADJUSTMENT PROCEDURE

Rear Lift Window Panel Latch Adjustment: Adjustment Procedure:

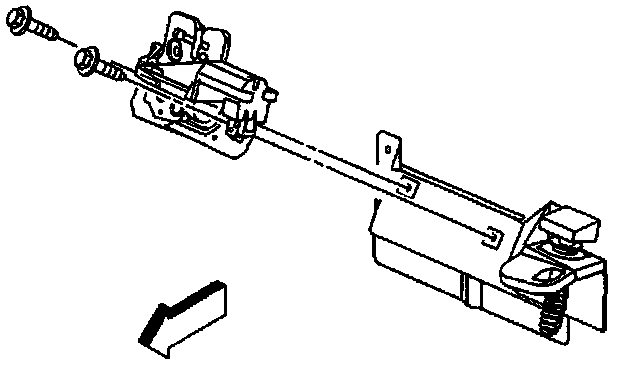

^ Minor adjustment
Loosen the latch mounting bolts and reposition the latch for minor latch adjustment. Refer to Rear Lift Window Panel Latch. Service and Repair

Rear Lift Window Panel Latch Adjustment: Adjustment Procedure:

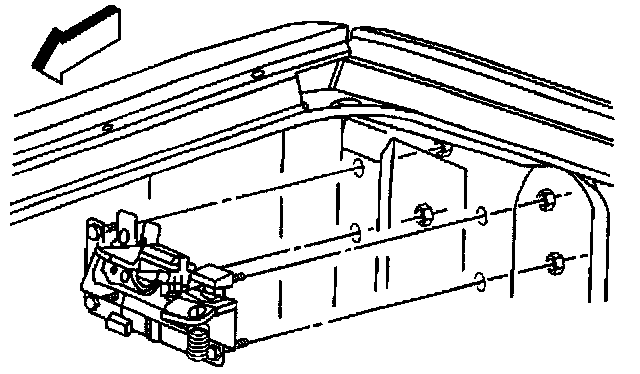

^ Major adjustment
Loosen the latch bracket mounting bolts and reposition the bracket for major latch adjustment. Refer to Rear Lift Window Panel Latch Bracket. Service and Repair
