Window Height Adjustment, Major

Door Window Height Adjustment (Major):

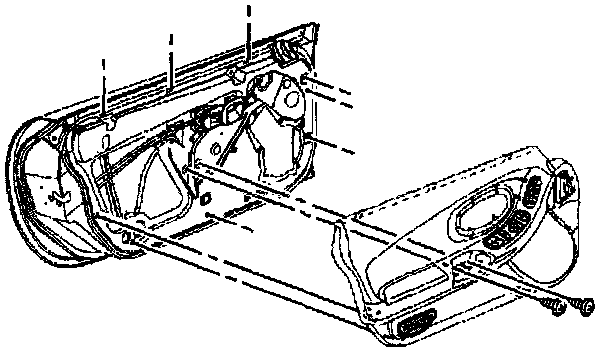

1. Remove the door trim panel.

Door Window Height Adjustment (Major):

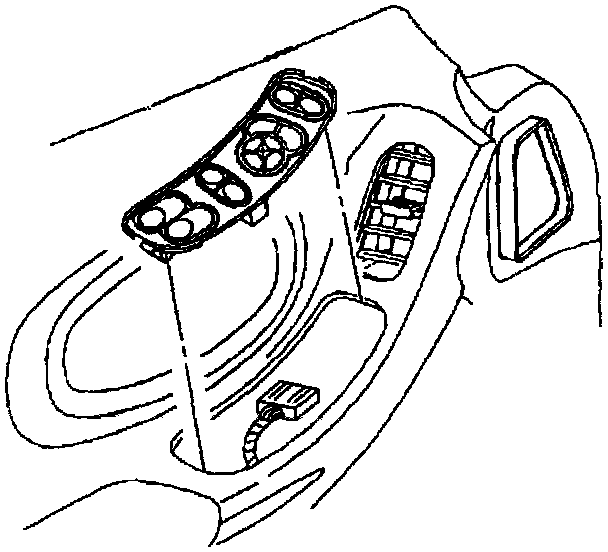

2. Reconnect the window switch to the harness.
3. Raise the door window.

Door Window Height Adjustment (Major):

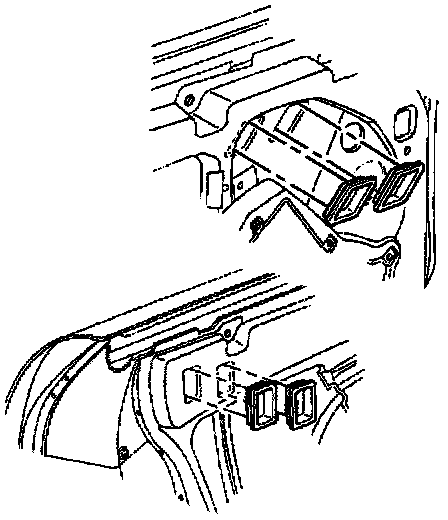

4. Remove the window clamp sight access plugs.

Door Window Height Adjustment (Major):

5. Loosen the window clamps.
6. Close the door.
7. With the aid of an assistant standing outside of the vehicle, position the window to the door opening.
8. From the inside of the vehicle tighten the window clamps.

Door Window Height Adjustment (Major):

9. Open the door and install the window clamp sight access plugs.

Door Window Height Adjustment (Major):

10. Install the door trim panel.
11. Perform minor height and minor tip-in adjustments as necessary.
